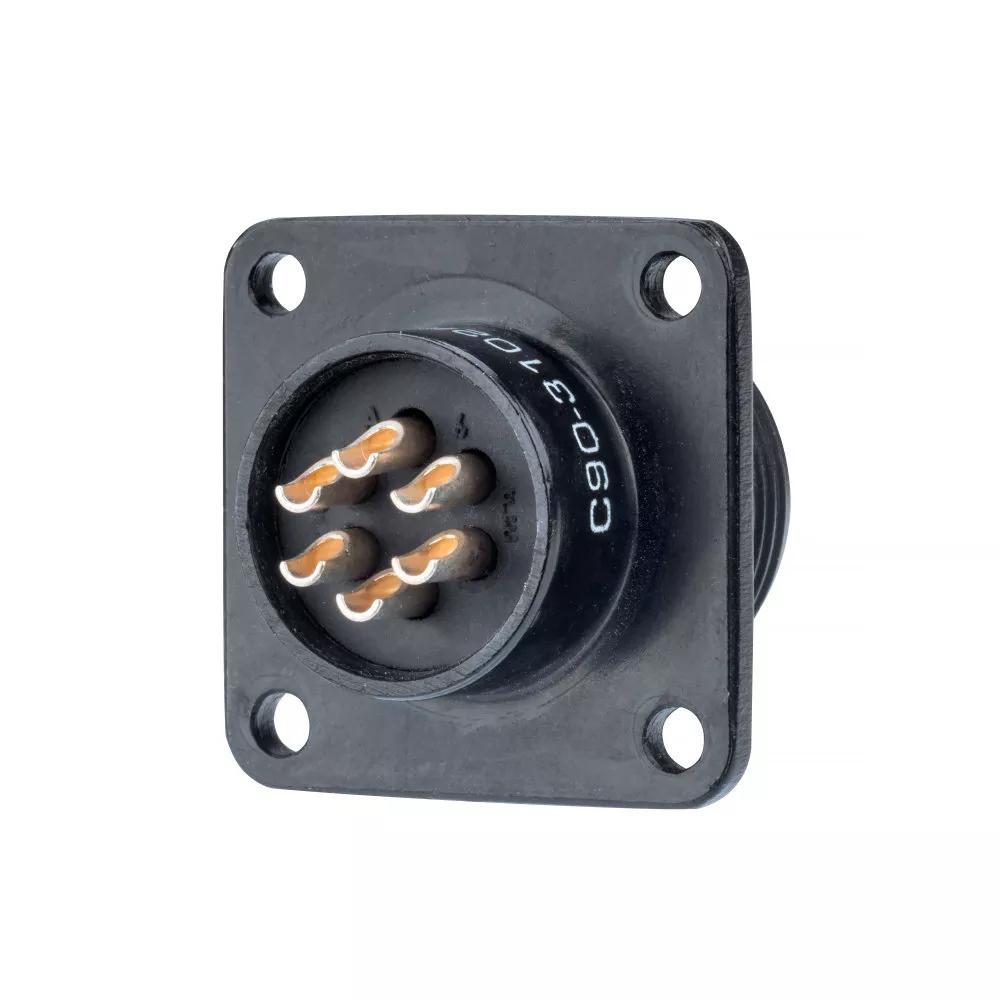

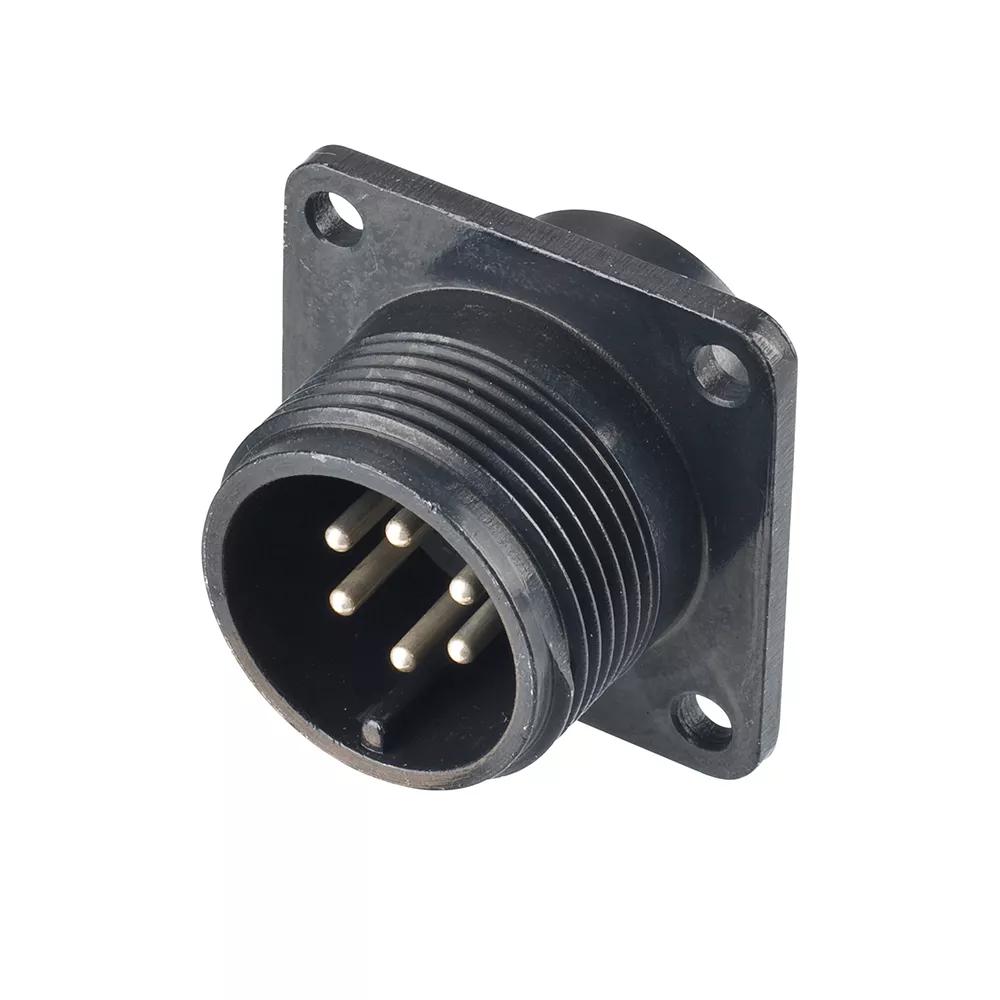

  • C90-3102R14S-6P - 6 Pos. Circular Panel Mount Conn. Plug contact

C90-3102R14S-6P

6 Pos. Circular Panel Mount Conn. Plug contact

Circular Connector equivalent to MIL-DTL-5015 (MIL-C-5015)

  • Receptacle shell, 6 x Male contacts for 16-22AWG cable.
  • RoHS Compliant version of MIL-DTL-5015 (MIL-C-5015) Circular Connectors, sealed to IP67.

Active

Popular product: currently in stock in network

RoHS Compliant - 2011/65/EU

(Does not require exemption)

Product Stock

Distributor Name Location of Stock Qty
Anglia Europe 41 Website
Digi-Key Global 13 Buy Now
Mouser Electronics Inc Global 25 Buy Now
TTI Inc USA 400 Website
Harwin Europe 50

Stock available: contact distributor to purchase

Product Information

Specification

+
Product Type: Circular Connector equivalent to MIL-DTL-5015 (MIL-C-5015)
Contact Gender: Male/Plug
Connector Orientation: Straight
Connection Type: Cable (Solder)
Mating Pin Size: Ø1.6mm
Current Rating: 13A
Operating Temperature: -55°C to +125°C

Materials

+
Finish/Plating on Termination: Silver
Finish/Plating on Contact Surface: Silver
Base Material of Contact: Copper Alloy
Housing Material: Aluminium Alloy
Housing Color: Black
Individual Part Weight: 20.17g
Packaging Style: Single Pack

Dimensions

+
Total Number of Contacts: 6
Body Length: 30.18mm
Polarising Features: Yes
Thread Size: 7/8-24UNEF
Body Size: 30.4mm
Conductor Size of compatible cable: 16-22AWG

Related Products

+
Other products to be used with this item: C90-25043-14S
Product Family: C90-3102R

Mating Products

Alternative products

C90-3101F14S-6P - 6 Pos. Circular Cable Conn. Plug contact

Closest alternative:

C90-3101F14S-6P

6 Pos. Circular Cable Conn. Plug contact
