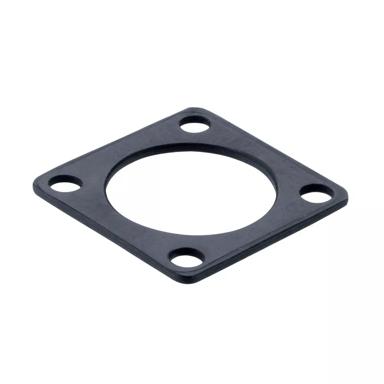

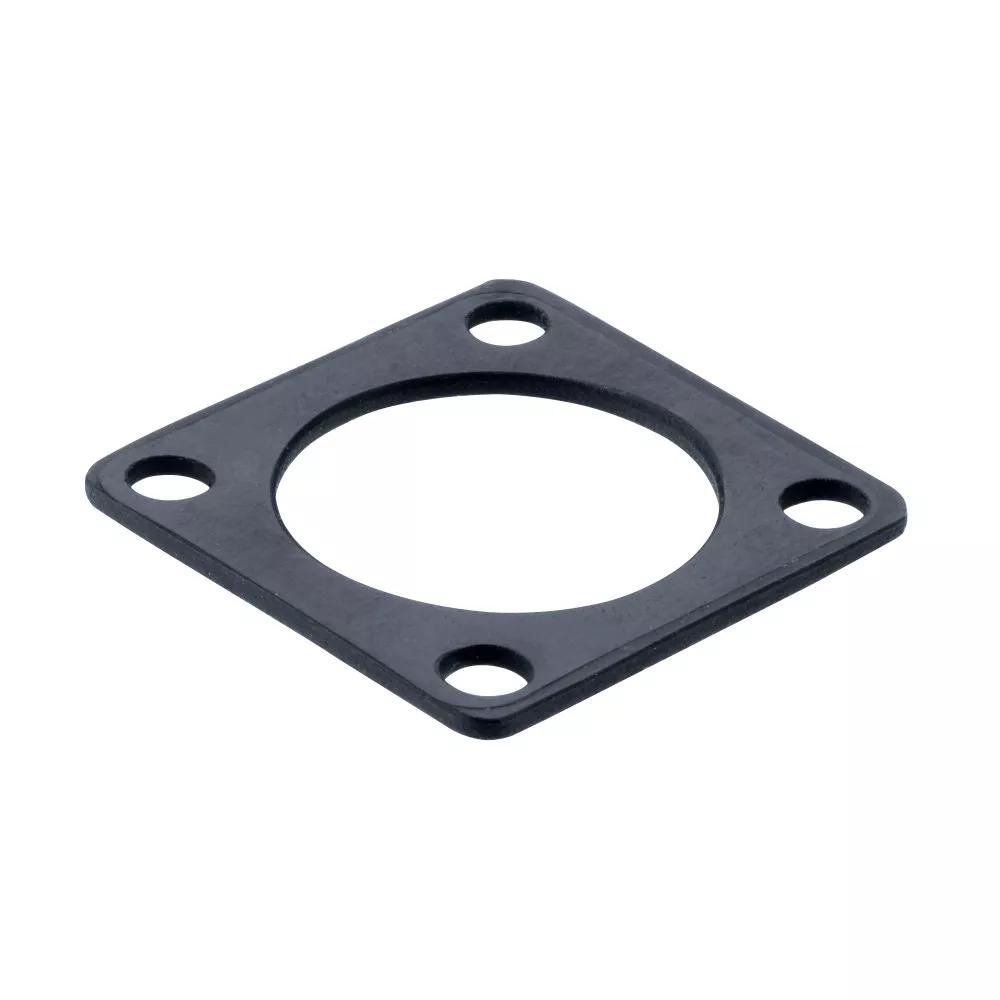

C90-3102R10SL-3S

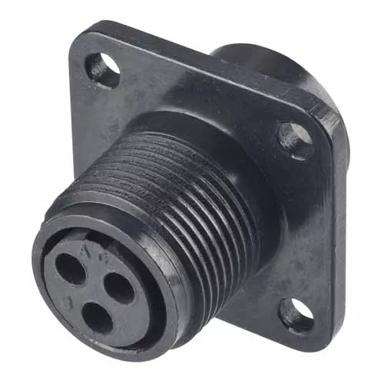

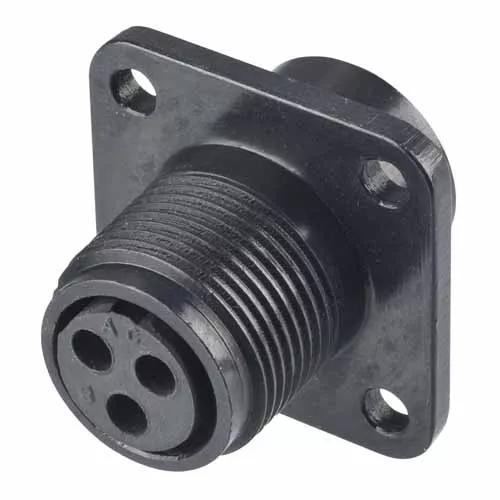

3 Pos. Circular Panel Mount Conn. Socket contact

Circular Connector equivalent to MIL-DTL-5015 (MIL-C-5015)

Add to Favorites

Loading… Check availability

1 similar products View products

Traceparts account required

Product Description

RoHS Compliant version of MIL-DTL-5015 (MIL-C-5015) Circular Connectors, sealed to IP67.
Receptacle shell, 3 x Female contacts for 16-22 AWG cable. Silver finish on contact area and solder termination.
For complete pin numbering or pin out information, see Component Specification C045XX.

C90-3102R10SL-3S - 3 Pos. Circular Panel Mount Conn. Socket contact

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with Exemption 6c

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Solder)

Cable Conductor Size:

16-22AWG

Mating Pin Size:

Ø1.6mm

Current Rating:

13A per contact

Operating Temperature:

-55°C to +125°C

Polarising Features:

Yes

Number of Signal Contacts:

Finish / Plating on Termination:

Silver

Finish / Plating on Contact Surface:

Silver

Base Material of Contact:

Copper Alloy

Housing Material:

Aluminium Alloy

Housing Colour:

Black

Packaging Style:

Single Pack

Individual Part Weight:

14.15g

Overall Dimensions (L x W x D) in mm:

30.18 x 25.40 sq.

Thread Size:

5/8-24UNEF

Frequently Asked Questions Ask a Question

The recommended cable size for connectors in the C90 range is 16-22AWG. We do not have any specific recommendations on cable type – this range is based on the same physical dimensions and specifications as MIL-DTL-5015, so any cable compatible with this standard will work for these connectors.

Was this answer useful?

Downloads

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF Download
