C90-25043-10SL

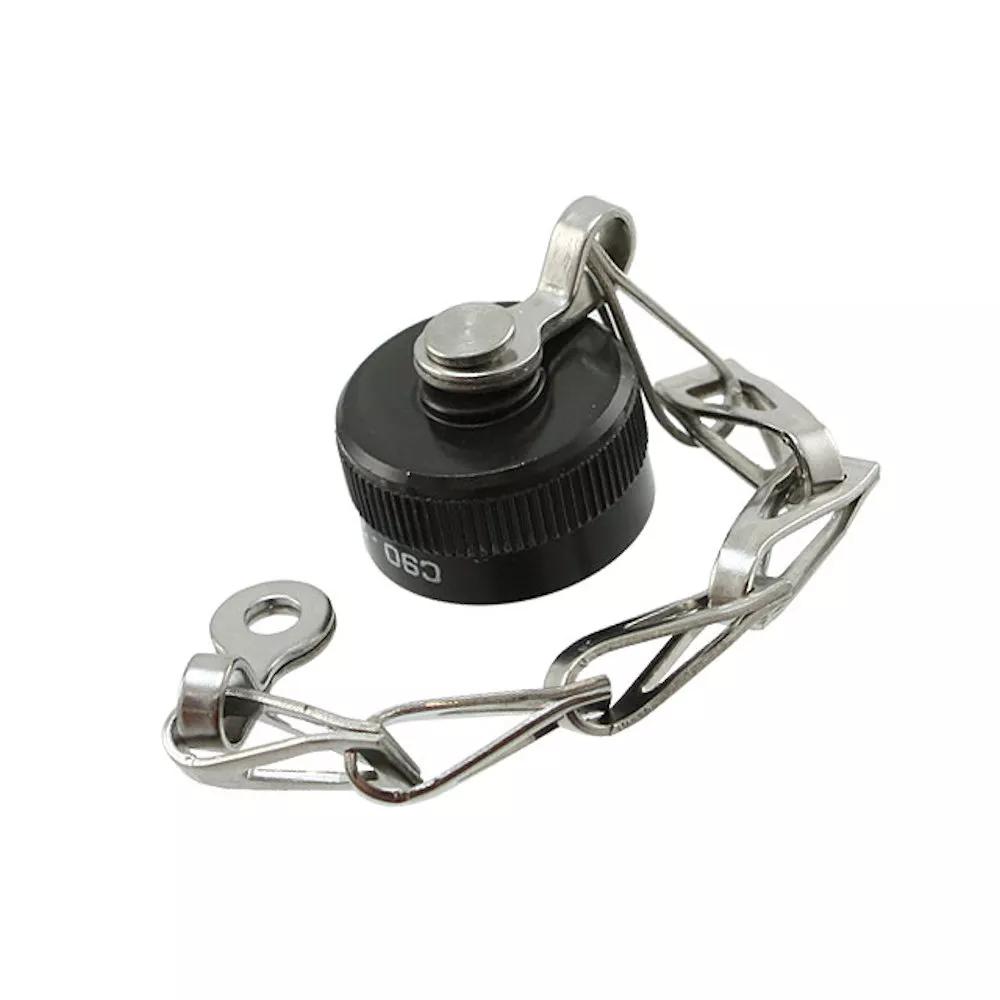

10SL Circular Conn. End Cap & Chain
Circular Connector equivalent to MIL-DTL-5015 (MIL-C-5015)
Loading… Check availability
2 similar products View products
Traceparts account required
Product Description
- Internal 5/8-24UNEF-2B thread size, use with 10SL shell size.
- Compatible with MIL-DTL-5015 (MIL-C-5015) Circular Connectors and RoHS compliant equivalent.
- Fitted with 101.6mm stainless steel chain.
Traceparts account required
Technical Details
Specification
EU RoHS Status:
Mating Pin Size:
Ø1.6mm
Operating Temperature:
-55°C to +125°C
Materials
Base Material of Contact:
Aluminium Alloy
Housing Material:
Aluminium Alloy
Housing Colour:
Black
Packaging Style:
Single Pack
Dimensions
Individual Part Weight:
11.3g
Overall Dimensions (L x W x D) in mm:
11.91 x Ø20.70, 101.60 chain
Thread Size:
5/8-24UNEF
