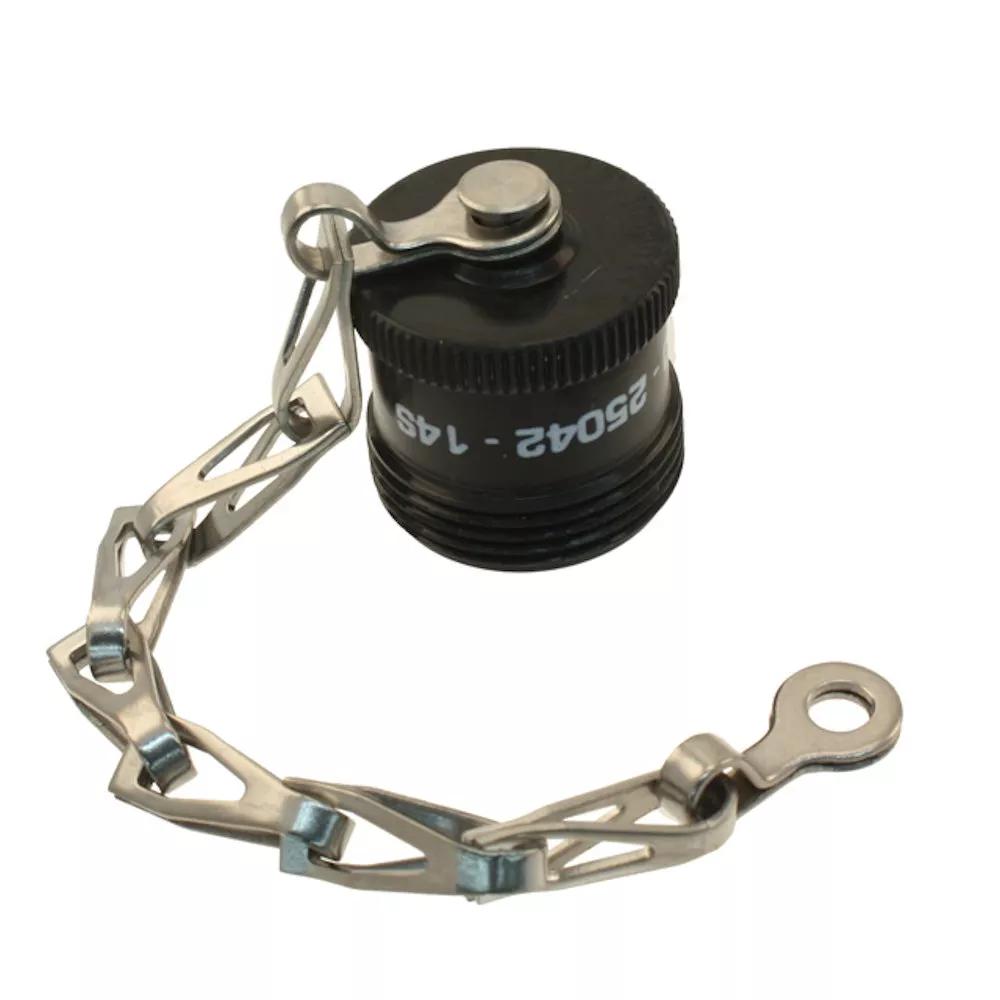

Circular Connector equivalent to MIL-DTL-5015 (MIL-C-5015)
External 7/8-24UNEF-2B thread size, use with 14S shell size.
Compatible with MIL-DTL-5015 (MIL-C-5015) Circular Connectors and RoHS compliant equivalent.
Fitted with 114.3mm stainless steel chain.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Environmental Compliance
Technical Details
Product Characteristics
Mating Pin Size:
Ø1.6mm
Country of Origin:
IN
Operating Temperature:
-55°C to +125°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Materials
Housing Material:
Aluminium Alloy
Base Material of Contact:
Aluminium Alloy
Packaging Style:
Single Pack
Housing Colour:
Black
Dimensions
Weight:
14.45g
Dimensions:
21.44 x Ø23.80, 114.30 chain
Thread Size:
7/8-24UNEF
Downloads
Technical Drawing / Datasheet - C90-25042.pdf
C045XX Component Specification - C90 Circular Connectors (MIL-DTL-5015 style connectors)
Product Training Module - Overview of the C90 RoHS Circular Connector range + designed to MIL-DTL-5015
IS-54 - C90 Circular Connectors Assembly Instruction Sheet
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement - includes all material legislations
Material composition for C90-25042-14S product
RoHS - C90-25042-14S
