C90-25042-10SL

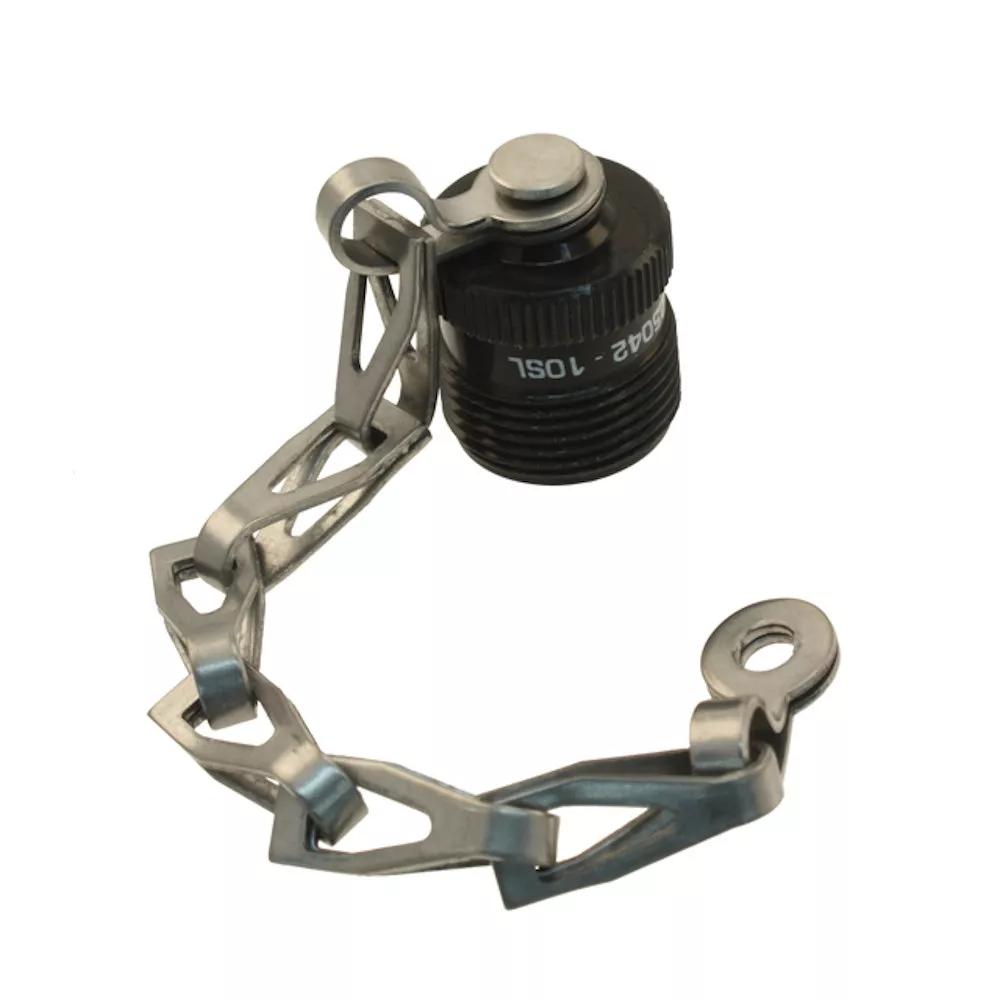

10SL Circular Conn. End Cap & Chain

Circular Connector equivalent to MIL-DTL-5015 (MIL-C-5015)

  • External 5/8-24UNEF-2B thread size, use with 10SL shell size.
  • Compatible with MIL-DTL-5015 (MIL-C-5015) Circular Connectors and RoHS compliant equivalent.
  • Fitted with 101.6mm stainless steel chain.
Availability
Add to Favorites

Technical Details

Specification

Mating Pin Size:

Ø1.6mm

Operating Temperature:

-55°C to +125°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Base Material of Contact:

Aluminium Alloy

Housing Material:

Aluminium Alloy

Housing Colour:

Black

Packaging Style:

Single Pack

Dimensions

Individual Part Weight:

9.74g

Overall Dimensions (L x W x D) in mm:

16.66 x Ø17.45, 101.60 chain

Thread Size:

5/8-24UNEF

Availability

23 in stock

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 23

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - C90-25042.pdf

ZIP

C90-25042-10SL CAD Model (ZIP file containing STP and IGES)

Download
PDF

C045XX Component Specification - C90 Circular Connectors (MIL-DTL-5015 style connectors)

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Material composition for C90-25042-10SL product

INSTRUCTION SHEETS

PDF

Product Training Module - Overview of the C90 RoHS Circular Connector range, designed to MIL-DTL-5015

OTHER DOWNLOADS

PDF

Catalog page - Circular Dust Caps, Rubber Bushing

PDF

Catalog page - Circular Connectors Specification, Pin Numbering

PDF

Catalog page - Circular Connectors Introduction
