B5740-214-F-C-2

7+7 Pos. Female DIL 24-28AWG Cable Conn. Kit, for Latches (BS Release)

2.00mm Pitch British Standard Datamate L-Tek

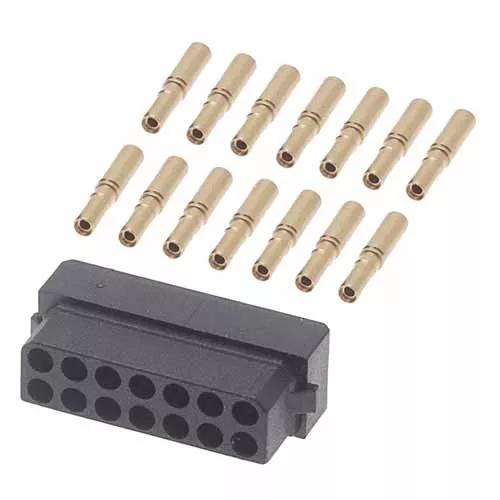

  • Complete kit: Double Row housing, 14 x barrel crimp contacts loose - Gold finish on contact clip and crimp shell.
  • Small Bore - suitable for 24 to 28AWG cable (Ø1.1mm max insulation). Spare contacts = M80-0130005.
  • British Standard Datamate - Fully tested and 100% inspected to BS9525 F0033.

Active

Limited availability or made-to-order (check alternatives for popular products)

RoHS Compliant - 2011/65/EU

(Requires exemption 6c)

Product Information

Specification

+
Product Type: 2.00mm Pitch British Standard Datamate L-Tek
Contact Pitch: 2.00mm (0.079")
Contact Gender: Female/Socket/Jack
Connector Orientation: Straight
Connection Type: Cable (Crimp)
Mating Pin Size: Ø0.5mm
Current Rating: 3.3A
Operating Temperature: -55°C to +125°C
Style of Latches: Compatible with latches

Materials

+
Finish/Plating on Termination: Gold
Finish/Plating on Contact Surface: Gold
Base Material of Contact: Beryllium Copper contact clip, Brass shell
Housing Material: PBT
Housing Color: Black
Housing Material UL Rating: UL94V-0
Individual Part Weight: 1.454g
Packaging Style: Bulk/Loose

Dimensions

+
Number of Rows: 2
Total Number of Contacts: 14
Body Length: 17.15mm
End Stackable: No
Side Stackable: No
Polarising Features: Yes
Can be cut to another size: No
Conductor Size of compatible cable: 24-28AWG
Mating Profiles/Heights

Related Products

+
Hand Crimp Tool: M22520/2-01
Positioner: T5747
Insertion / Removal Tool: Z80-280
Dummy Contacts (for keying): M80-023
Spare Contacts: M80-0130005
High Temp Alternative: M80-8441445
Strain-Relief Hoods/Backshells: M80-8801498
Replacement Product / Standard Alternative: M80-8881405
Product Family: M80-888
