4 Pos. Female SIL 24-28AWG Cable Conn. Kit, for Latches (BS Release)
2.00mm Pitch British Standard Datamate L-Tek
Made to order
3 similiar products View products

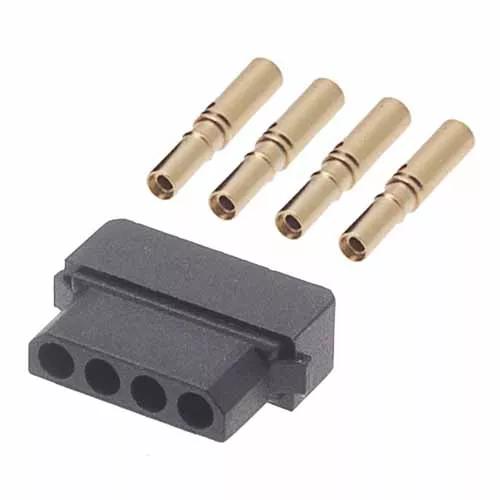

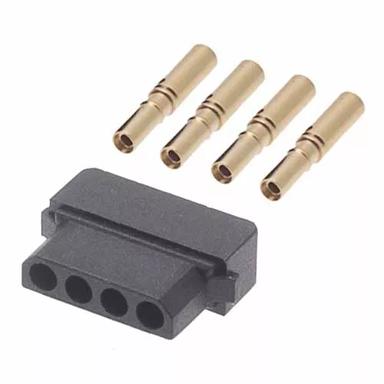

- Complete kit: Single Row housing, 4 x barrel crimp contacts loose – Gold finish on contact area and termination. British Standard Datamate – Fully tested and 100% inspected to BS9525 F0033.
- Small Bore – suitable for 24 to 28AWG cable (Ø1.1mm max insulation). Spare contacts = M80-0130005.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
Cable Conductor Size:
Mating Pin Size:
3.3A max individual contact, 3A max simultaneous (25°C)
-55°C to +125°C
Style of Latches:
Compatible with latches
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Beryllium Copper contact clip, Brass shell
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
11.15 max x 3.40 x 8.15 max
Frequently Asked Questions Ask a Question
When I crimp this terminal, the conductor crimp is over the inspection hole – isn’t this a defect per IPC/WHMA-A-620?
We have a support article relating to this question, but essentially the hole you see is not designed to be an inspection hole. It is a plating hole, to allow the finish materials to reach the bottom of the crimp bore and help ensure performance. As such it is not relevant to IPC-A-620. Applying a crimp using the correct tools will indeed overlap the plating hole by 25 to 50%, but this is intended and expected. The design of the Datamate connector is so compact, there is no room to move the crimp area away from this hole without making the whole connector design larger.
Was this answer useful?
What is the difference between this BS release connector and the standard Datamate connector?
Commercial Datamate connectors and Datamate released to BS9525-F0033 are manufactured on the same line. But product released to BS9525-F0033 is 100% inspected, product from every batch is tested, and yearly tests are also carried out, to meet the requirements of BS9525-F0033. These connectors are generally specified only in safety-critical applications, as it carries a price premium. You can find more details on our Support article.
Was this answer useful?
RoHS Compliant (2015/863/EU) with Exemption 6cPDF Download
