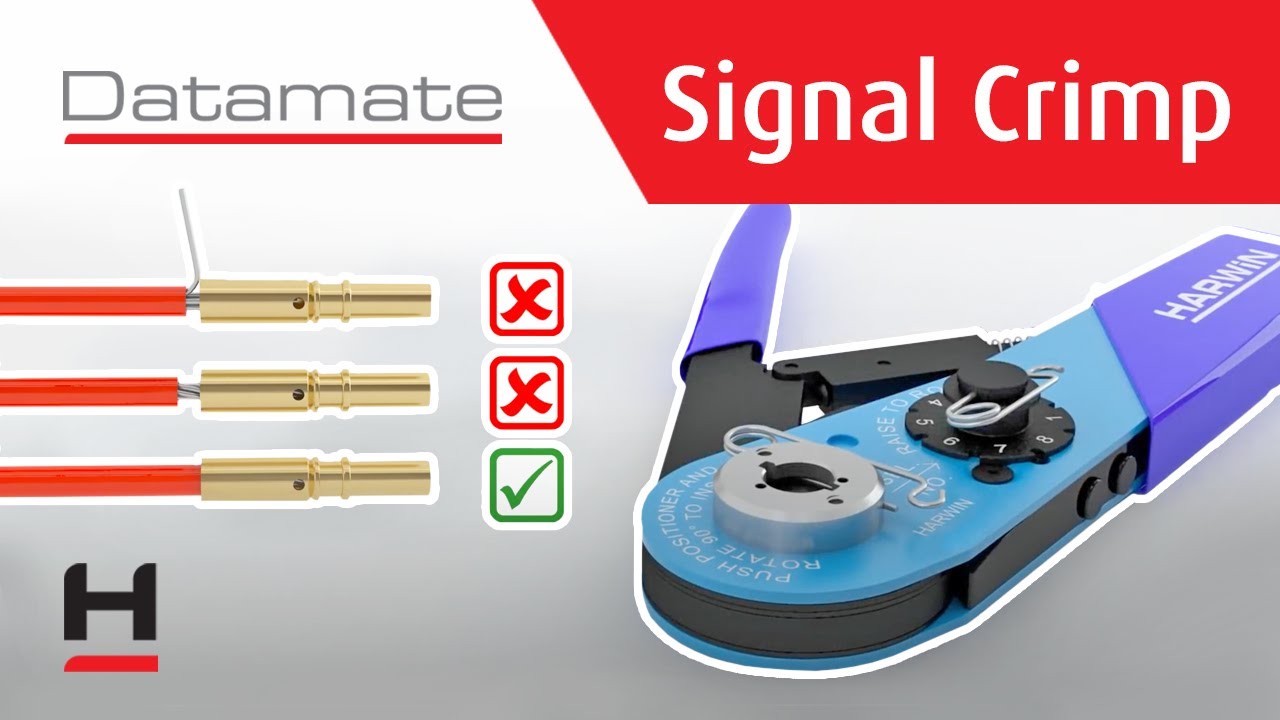

Youtube video for Datamate – Signal Crimping & Assembly Guide

Datamate – Signal Crimping & Assembly Guide

Datamate is a high reliability connector system that withstands high loads of shock and vibration and extreme temperatures. This video will help answer your questions about crimping and inserting female Datamate contacts into the appropriate J-Tek, Mix-Tek or L-Tek housing.

The same techniques shown here can also be used for male signal contacts and M300 contacts.

Download the Instruction Sheets for this operation from the Design Resources page or direct from:

  • IS-01 (Contact crimping)
  • IS-25 (Contact assembly)

Browse the Datamate range
