Z3108-00

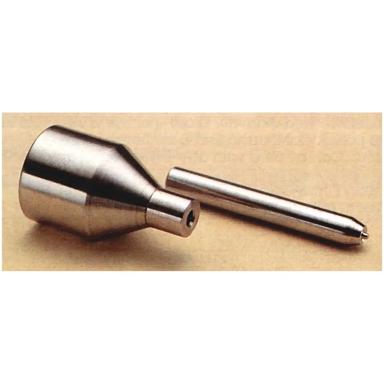

Punch and Die Tool Set

Hardware - Terminal Pin, Terminal Lug, Turret Lug

  • For correct swaging of Terminal H3108-01.
  • Use with a suitable bench press.
  • Swage is for mechanical strength – terminal should also be soldered to PCB for electrical connection.
Availability
Add to Favorites

Technical Details

Specification

Contact Gender:

Tooling

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Packaging Style:

Single Pack

Dimensions

Individual Part Weight:

30.706g

Availability

19 in stock

Info Circle

Low availability or made to order”: “This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order

Stock held by Harwin: contact distributor to purchase.

Distributor Location Quantity (Updated Daily)
Distributor Harwin
Location Global
Quantity (Updated Daily) 19
