Home > Z20-320
Active

Z20-320

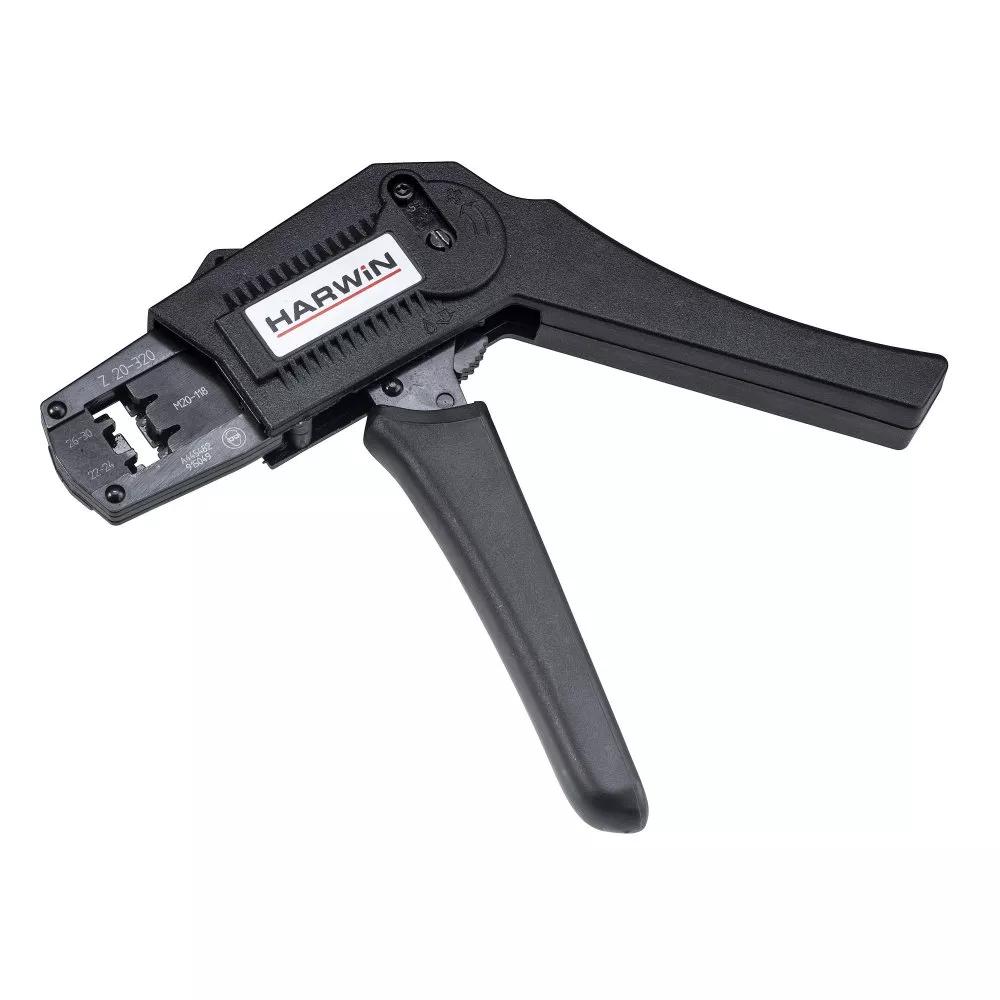

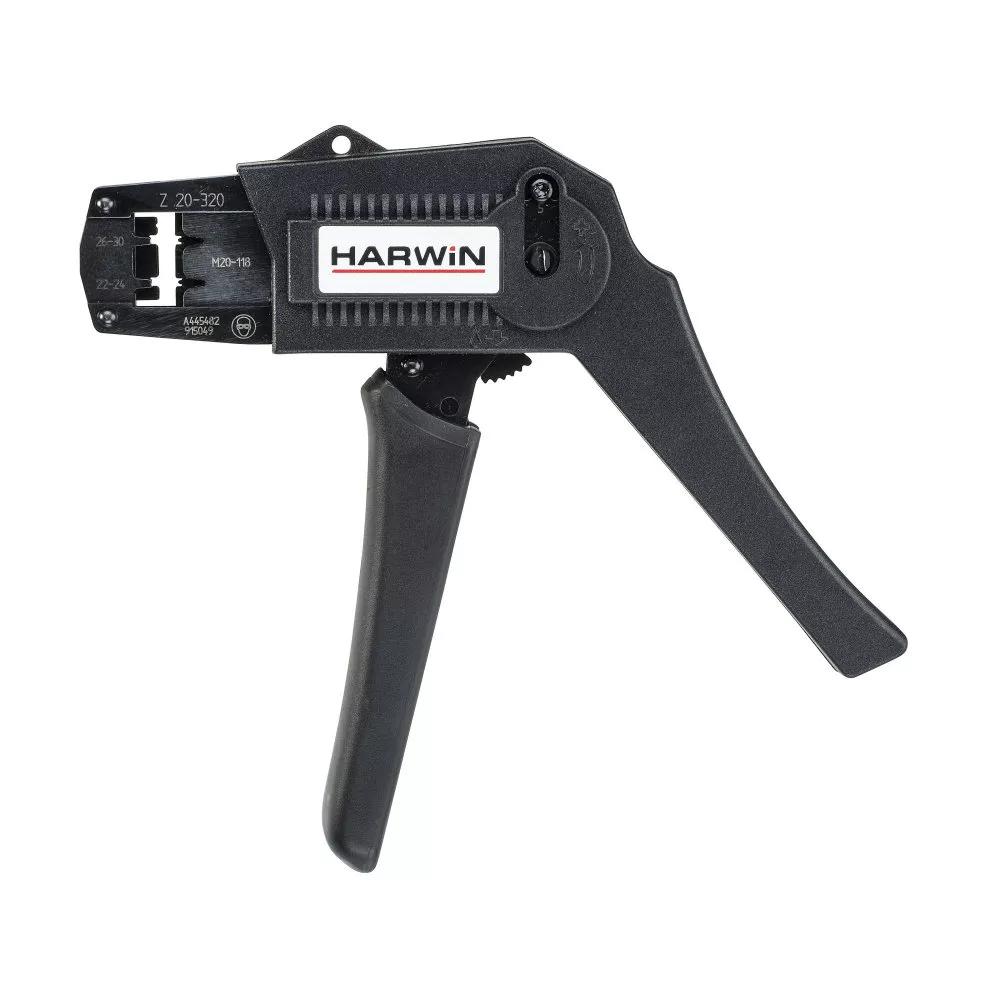

Hand Crimp Tool

2.54mm (0.1") Pitch PCB Connector - M20 Series

Technical Details

Specification

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Tooling

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Packaging Style:

Single Pack

Dimensions

Individual Part Weight:

431g

Overall Dimensions (L x W x D) in mm:

305.00 x 170.00 x 35.00 (in box)

Availability

Distributor Location Quantity
Digi-Key
Global
Status5
Farnell
Europe
Status15
Harwin
Europe
Status43
Mouser Electronics Inc
Global
Status7
Newark
USA
Status12
TTI Inc
USA
Status1

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

No questions have been asked yet

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - Z20-320.pdf

PDF

C001XX Component Specification - M20 Series (2.54mm pitch PCB connectors)

ENVIRONMENTAL COMPLIANCE

PDF

Not applicable to RoHS (2015/863/EU)

PDF

REACH Harwin statement (24-Jul-2019) including 201 SVHC (16-Jul-2019), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 5.12) - Company Summary Statement

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Harwin M20 (2.54mm pitch) and M22 (2mm pitch) ranges

PDF

IS-15 - Z20-320 Hand Crimp Tool Instruction Sheet

OTHER DOWNLOADS

PDF

Catalog page - M20 Female Crimp Contacts, Polarising Key

PDF

Catalog page - M20 Connectors Specification
