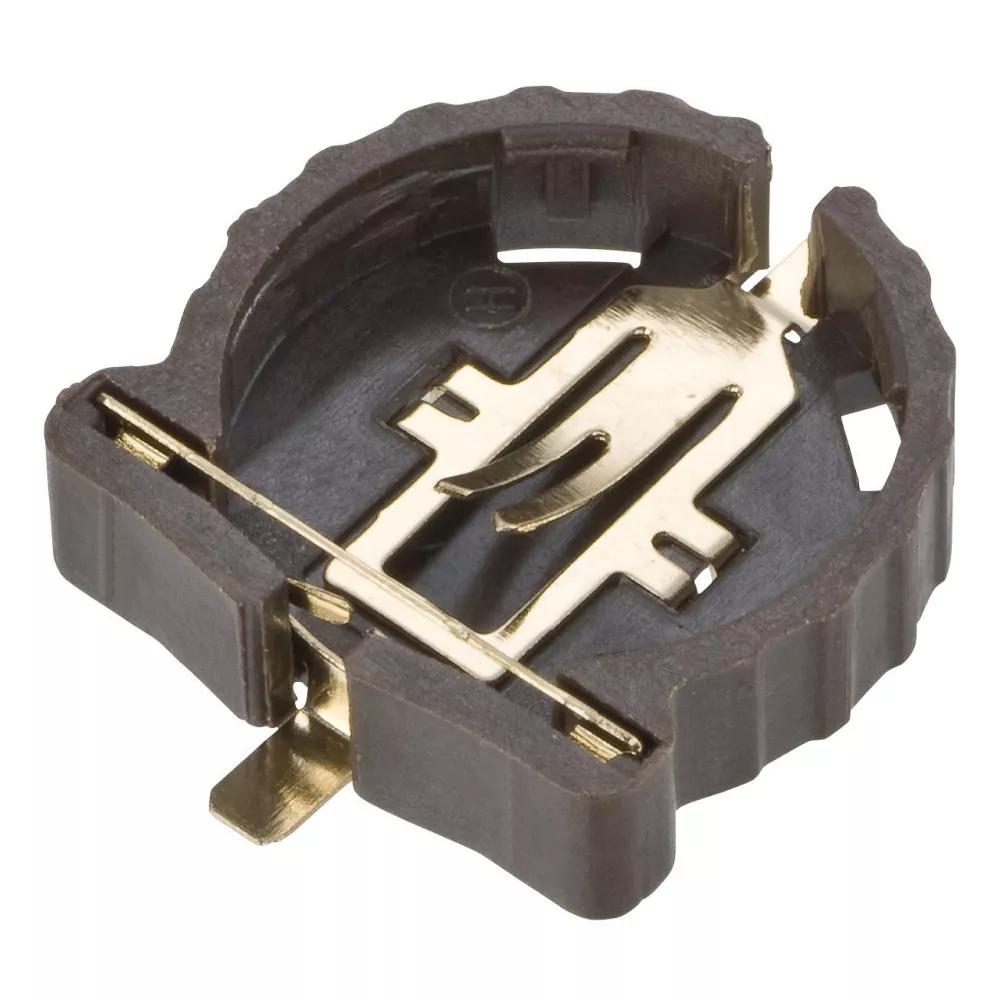

S8411-45R

SMT Battery Coin Cell Holder/Retainer (T+R)

Hardware - PCB Battery Holder

  • Suitable for CR1220 (Ø12.5 x 2.0mm) Coin Cell Batteries.
  • Surface Mount, supplied in Tape and Reel packaging. Gold finish on contact area and termination.
Add to Favorites

Technical Details

Specification

Connector Orientation:

Horizontal

Connection Type:

Surface Mount (SMT)

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Entry Style:

Top Entry

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PPS

Housing Colour:

Brown

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.607g

Overall Dimensions (L x W x D) in mm:

19.20 x 14.80 x 5.00

Height of Connector above PCB:

4.25mm

Availability

39,206 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 17032
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 9947
Distributor TTI Europe
Location Europe
Quantity (Updated Daily) 4000
Distributor Farnell
Location Europe
Quantity (Updated Daily) 3727
Distributor Newark
Location USA
Quantity (Updated Daily) 3000
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 1500

Questions & Answers Ask a Question

What is the procedure for removing / ejecting the coin cell battery?

We do not have a specific procedure detailed for removing the battery. If you have a look at the Technical Drawing (further down this page under Downloads/Technical Documentation), you will see a small opening in the housing surround at the top of the image. Here you can slide something small under the battery to lever it out the holder – just be careful not to damage the battery or holder.

Does this product need a pick and place cap for SMT placement?

A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - S8411R.pdf

ZIP

S8411-45R CAD Model (ZIP file containing STP and IGES)

Download

TEST REPORTS

PDF

Test Report HT027 - Coin Cell Holders S8211, S8401, S8411, S8421 Environmental (Vibration, Shock, Bump)

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (6-Jul-2020) including 209 SVHC (25-Jun-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (16-Oct-2019) - includes all material legislations

PDF

Material composition for S8411-45R product

OTHER DOWNLOADS

PDF

3D PDF file - S8411-45R_3D.pdf

PDF

Catalog page - Coin Cell Holder (Ø12mm)

PDF

Product Change Notification 22-Oct-2014 - S8411-45R

PDF

Outgassing data for Harwin products (plastics)
