S8071-46R

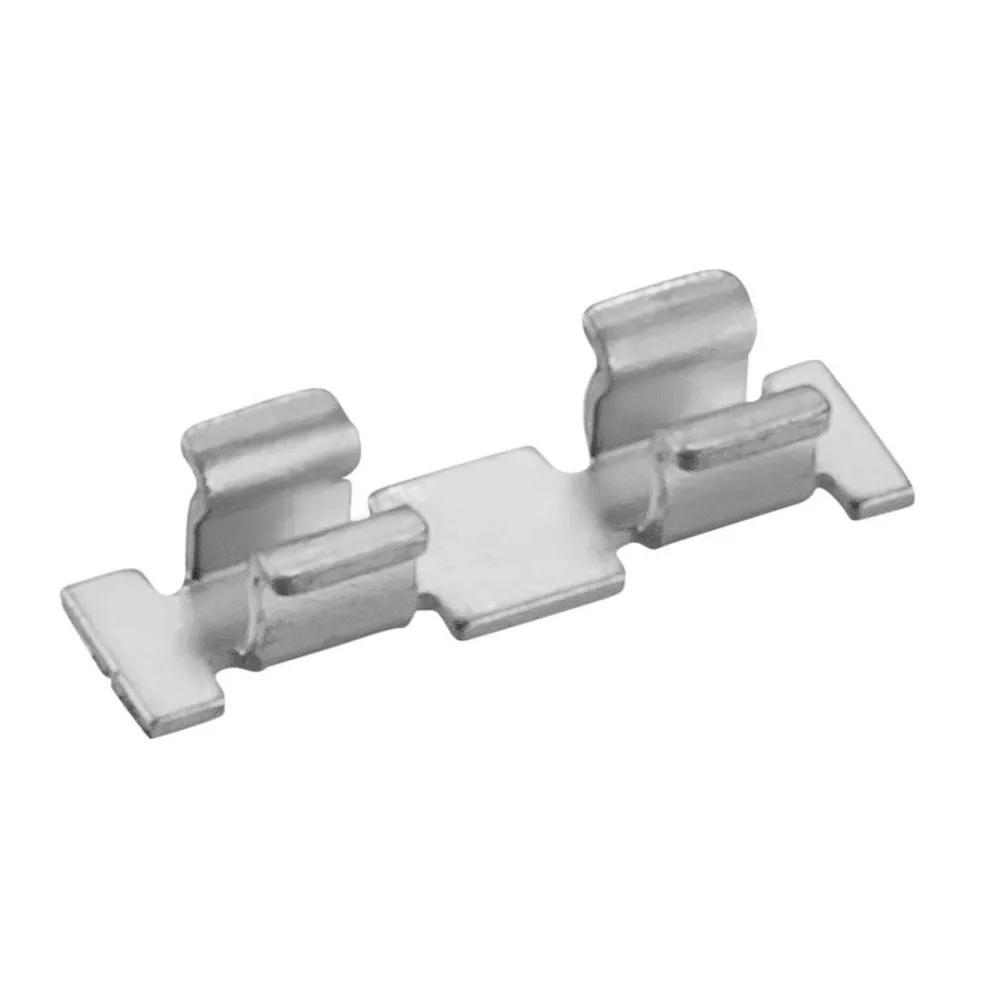

SMT Removable Jumper Link Clip (T+R)

Hardware - PCB Shorting Link, Removable Jumper Link

Order Sample

Add to Favorites

In stock Check availability

12 similar products View products

Traceparts account required

Product Description

Vertical Surface Mount clip for removable jumper link applications. Accepts Ø0.7mm cross-section. Tin finish.
Use with S07-46 23mm long removable bar or S08-46 15mm long removable bar.
Packaged in Tape & Reel for automated placement.

S8071-46R - SMT Removable Jumper Link Clip (T+R)

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

Ø0.7mm

Current Rating:

3 to 13A, dependent on usage configuration (check Test Report)

Operating Temperature:

-40°C to +85°C

Soldering Data:

Max Solder Temperature: 250°C for 10 seconds

Polarising Features:

Entry Style:

Top Entry

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Stainless Steel

Packaging Style:

Tape and Reel

Individual Part Weight:

0.01g

Overall Dimensions (L x W x D) in mm:

4.50 x 1.20 x 1.00

Height of Connector above PCB:

1.00mm

Frequently Asked Questions Ask a Question

A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.
