S13-503

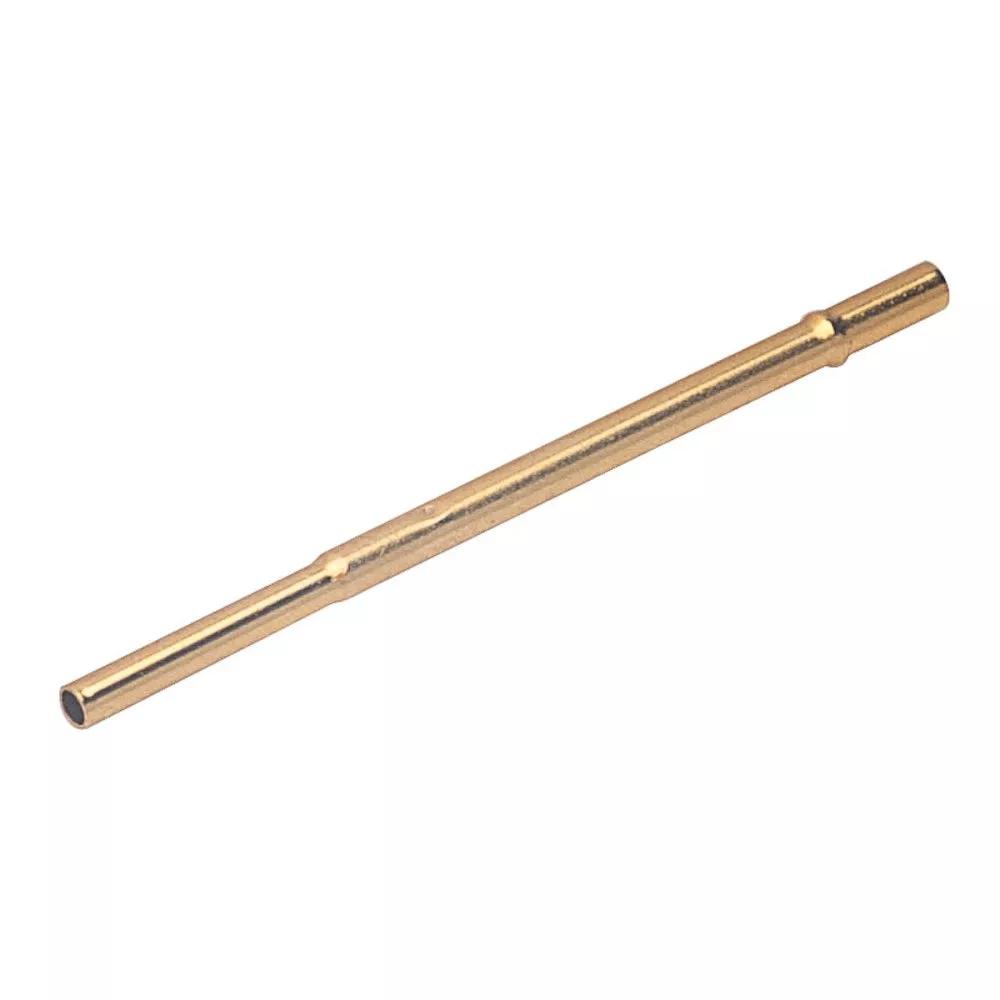

ATE Spring Probe Sleeve for Two-Part Probe, 1.27mm Centres

ATE Spring Probe Receptacle, Test Probe Sleeve

Availability
Add to Favorites

Technical Details

Specification

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Cable Conductor Size:

30AWG

Current Rating:

Dependent on assembled probe

Operating Temperature:

-40°C to +180°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Finish / Plating on Termination:

Gold

Base Material of Contact:

Phosphor Bronze

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.027g

Overall Dimensions (L x W x D) in mm:

17.75 x Ø0.97

Availability

19,058 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 10701
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 2951
Distributor Genalog
Location Europe
Quantity (Updated Daily) 915
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 383
Distributor Newark
Location USA
Quantity (Updated Daily) 108

Stock held by Harwin: contact distributor to purchase.

Distributor Harwin
Location Global
Quantity (Updated Daily) 4000

Questions & Answers Ask a Question

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.
