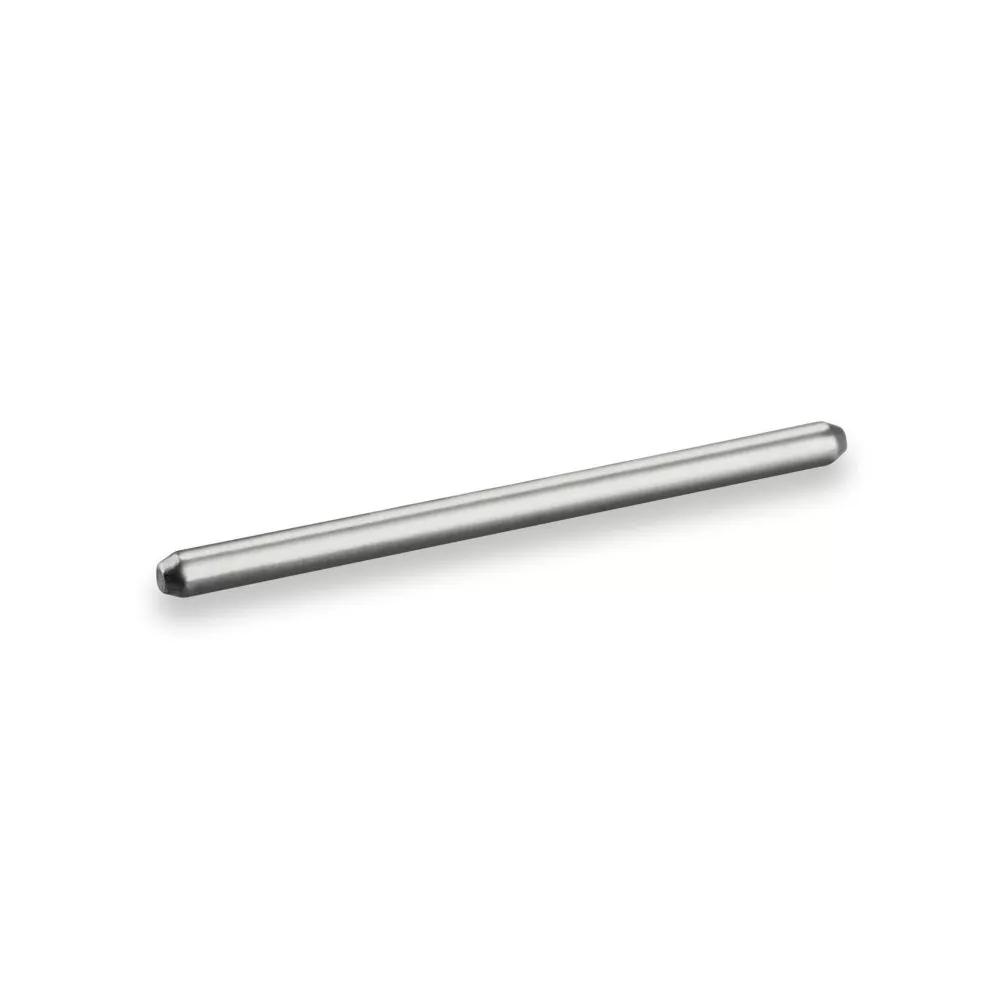

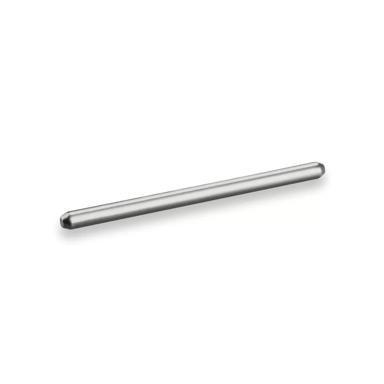

S08-46

Removable Jumper Link Bar

Hardware - PCB Shorting Link, Removable Jumper Link

  • 15mm long removable bar for jumper link applications. Ø0.7mm cross-section.
  • Use with S8071-46R vertical clips or S8081-46R horizontal clips.

Technical Details

Specification

Contact Gender:

Accessory

Current Rating:

3 - 13A

Operating Temperature:

-40°C to +85°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Phosphor Bronze

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.052g

Overall Dimensions (L x W x D) in mm:

15.00 x Ø0.70
