R40-6000802

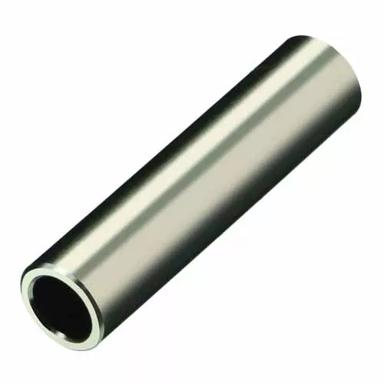

8.00mm M4 Metric Clearance Circular Brass Spacer/Pillar

Hardware - Spacer (Standoff, Pillar)

  • M4 Clearance Circular Brass Spacer, Ø6.35mm O/D.
  • 8mm body length.
  • Nickel plating for corrosion resistance.
Add to Favorites

Technical Details

Specification

Contact Gender:

Female

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Finish / Plating on Contact Surface:

Nickel

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

1.16g

Overall Dimensions (L x W x D) in mm:

8.00 x Ø6.35

Body Length:

8.00mm

Thread Size:

M4 Clearance

Availability

Popular product
Distributor Location Quantity
Anglia
Europe
Status200
Digi-Key
Global
Status1391
Farnell
Europe
Status159
Harwin
Global
Status2600
Mouser Electronics Inc
Global
Status219
Newark
USA
Status45

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

Do your metric spacers come in 0.5mm increments?

Sorry, but our metric spacers are all in 1mm length increments. Please check the Technical Drawing/Datasheet for specific sizes listed in this product range.
