R40-1001402

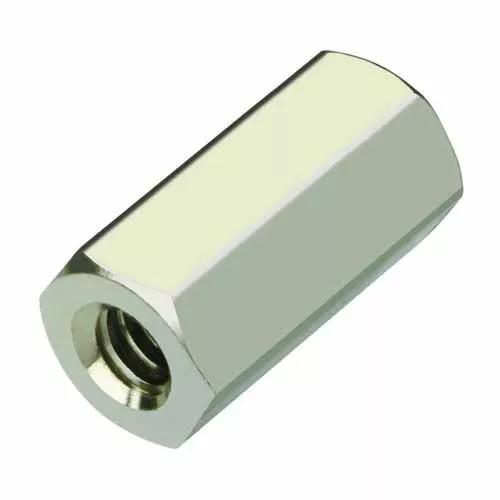

14.00mm M4 Metric Threaded Hex Brass Spacer/Pillar

Hardware - Spacer (Standoff, Pillar)

  • M4 Threaded Hexagonal Brass Spacer, 7mm A/F.
  • 14mm body length.
  • Nickel plating for corrosion resistance.
Add to Favorites

Technical Details

Specification

Contact Gender:

Female

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Finish / Plating on Contact Surface:

Nickel

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

3.817g

Overall Dimensions (L x W x D) in mm:

14.00 x 7.00 A/F Hexagon

Body Length:

14.00mm

Thread Size:

M4

Availability

19,100 in stock

Info Circle

Low availability or made to order”: “This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 5739
Distributor Anglia
Location Europe
Quantity (Updated Daily) 2900
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 2893
Distributor Farnell
Location Europe
Quantity (Updated Daily) 268

Stock held by Harwin: contact distributor to purchase.

Distributor Harwin
Location Global
Quantity (Updated Daily) 7300

Questions & Answers Ask a Question

Do your metric spacers come in 0.5mm increments?

Sorry, but our metric spacers are all in 1mm length increments. Please check the Technical Drawing/Datasheet for specific sizes listed in this product range.
