Home > R30-6011202
Active

R30-6011202

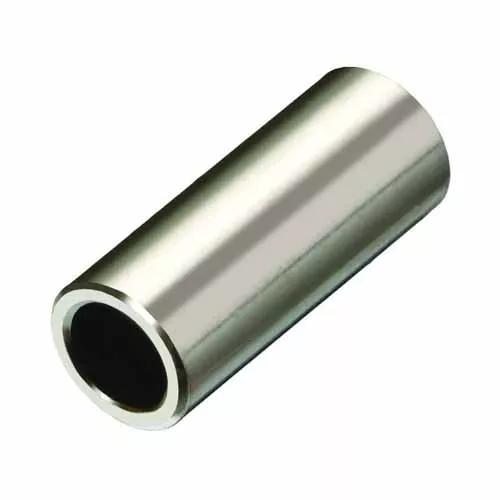

12.00mm M3 Metric Clearance Circular Brass Spacer/Pillar

Hardware - Spacer (Standoff, Pillar)

  • M3 Clearance Circular Brass Spacer, Ø4.76mm O/D.
  • 12mm body length.
  • Nickel plating for corrosion resistance.
Add to Favorites

Technical Details

Specification

Contact Gender:

Female

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Finish / Plating on Contact Surface:

Nickel

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.976g

Overall Dimensions (L x W x D) in mm:

12.00 x Ø4.76

Body Length:

12.00mm

Thread Size:

M3 Clearance

Availability

Popular product
Distributor Location Quantity
Anglia
Europe
Status239
Digi-Key
Global
Status876
Farnell
Europe
Status460
Harwin
Global
Status7600
Mouser Electronics Inc
Global
Status1076
Newark
USA
Status363

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

Do your metric spacers come in 0.5mm increments?

Sorry, but our metric spacers are all in 1mm length increments. Please check the Technical Drawing/Datasheet for specific sizes listed in this product range.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - R30-601.pdf

ZIP

R30-6011202 CAD Model (ZIP file containing STP)

Download

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF

REACH Harwin statement (6-Jul-2020) including 209 SVHC (25-Jun-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

PDF

Material composition for R30-601 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview of the Hardware products (Spacers, Terminals, Shorting Links)

OTHER DOWNLOADS

PDF

Catalog page - Clearance Spacers
