Home > R30-5001102
Active

R30-5001102

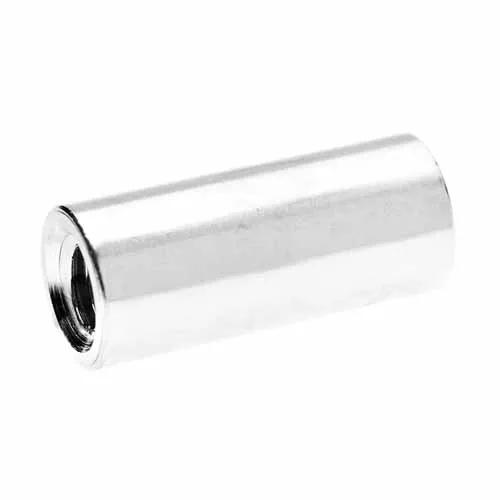

11.00mm M3 Metric Threaded Circular Brass Spacer/Pillar

Hardware - Spacer (Standoff, Pillar)

  • M3 Threaded Circular Brass Spacer, Ø4.76mm O/D.
  • 11mm body length.
  • Nickel plating for corrosion resistance.
Add to Favorites

Technical Details

Specification

Contact Gender:

Female

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Finish / Plating on Contact Surface:

Nickel

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

1.159g

Overall Dimensions (L x W x D) in mm:

11.00 x Ø4.76

Body Length:

11.00mm

Thread Size:

M3

Availability

22,890 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 7976
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 3600
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 1314

Stock held by Harwin: contact distributor to purchase.

Distributor Harwin
Location Global
Quantity (Updated Daily) 10000

Questions & Answers Ask a Question

Do your metric spacers come in 0.5mm increments?

Sorry, but our metric spacers are all in 1mm length increments. Please check the Technical Drawing/Datasheet for specific sizes listed in this product range.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - R30-500.pdf

ZIP

R30-5001102 CAD Model (ZIP file containing STP)

Download

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF

REACH Harwin statement (6-Jul-2020) including 209 SVHC (25-Jun-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (16-Oct-2019) - includes all material legislations

PDF

Material composition for R30-500 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview of the Hardware products (Spacers, Terminals, Shorting Links)

OTHER DOWNLOADS

PDF

Catalog page - Threaded Female Spacers
