Home > R30-3001302
Active

R30-3001302

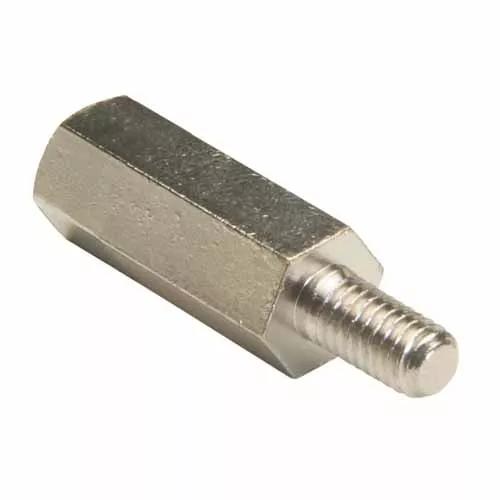

13.00mm M3 Metric M/F Threaded Hex Brass Spacer/Pillar

Hardware - Spacer (Standoff, Pillar)

  • M3 Male/Female Threaded Hexagonal Brass Spacer.
  • 5mm A/F across body, 13mm body length, 6mm male stud.
  • Nickel plating for corrosion resistance.
Add to Favorites

Technical Details

Specification

Contact Gender:

Male/Female

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Finish / Plating on Contact Surface:

Nickel

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

2.224g

Overall Dimensions (L x W x D) in mm:

19.00 x 5.00 A/F Hexagon

Body Length:

13.00mm

Male Stud Length:

6.00mm

Thread Size:

M3

Availability

41,574 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Farnell
Location Europe
Quantity (Updated Daily) 30160
Distributor Genalog
Location Europe
Quantity (Updated Daily) 3500
Distributor Anglia
Location Europe
Quantity (Updated Daily) 2851
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 2017
Distributor Avnet Abacus
Location Europe
Quantity (Updated Daily) 1400
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 700
Distributor Newark
Location USA
Quantity (Updated Daily) 395
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 351
Distributor TTI Europe
Location Europe
Quantity (Updated Daily) 200

Questions & Answers Ask a Question

What is the REACH position for your R30 brass standoffs?

The REACH statement for all our products is given on this product page under Downloads – look for Environmental Compliance in this section, and you will see the REACH statement listed for download. As these spacers are made using a 3% Lead free maching brass (which you can see listed in the Material Compositon data), this Lead content is reportable as an SVHC. Please read the REACH statement for further information, and contact our Compliance Team if you have any further questions.

Do your metric spacers come in 0.5mm increments?

Sorry, but our metric spacers are all in 1mm length increments. Please check the Technical Drawing/Datasheet for specific sizes listed in this product range.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - R30-300.pdf

ZIP

R30-3001302 CAD Model (ZIP file containing STP and IGES)

Download

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.1) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Material composition for R30-300 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview of the Hardware products (Spacers, Terminals, Shorting Links)

OTHER DOWNLOADS

PDF

Catalog page - Threaded Male/Female, Male/Male Spacers
