Home > R30-3001202
Active

R30-3001202

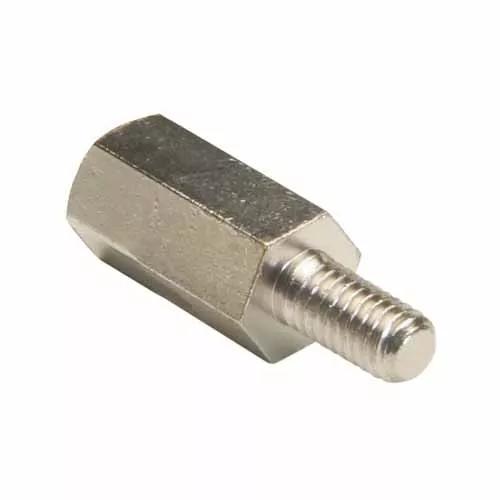

12.00mm M3 Metric M/F Threaded Hex Brass Spacer/Pillar

Hardware - Spacer (Standoff, Pillar)

  • M3 Male/Female Threaded Hexagonal Brass Spacer.
  • 5mm A/F across body, 12mm body length, 6mm male stud.
  • Nickel plating for corrosion resistance.
Add to Favorites

Technical Details

Specification

Contact Gender:

Male/Female

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Finish / Plating on Contact Surface:

Nickel

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

2.041g

Overall Dimensions (L x W x D) in mm:

18.00 x 5.00 A/F Hexagon

Body Length:

12.00mm

Male Stud Length:

6.00mm

Thread Size:

M3

Availability

Popular product
Distributor Location Quantity
Anglia
Europe
Status5985
Digi-Key
Global
Status13188
Farnell
Europe
Status762
Harwin
Global
Status8500
Mouser Electronics Inc
Global
Status2363
Newark
USA
Status1546
TTI Europe
Europe
Status6200
TTI Inc
USA
Status800

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

Do your metric spacers come in 0.5mm increments?

Sorry, but our metric spacers are all in 1mm length increments. Please check the Technical Drawing/Datasheet for specific sizes listed in this product range.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - R30-300.pdf

ZIP

R30-3001202 CAD Model (ZIP file containing STP and IGES)

Download

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF

REACH Harwin statement (6-Jul-2020) including 209 SVHC (25-Jun-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

PDF

Material composition for R30-300 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview of the Hardware products (Spacers, Terminals, Shorting Links)

OTHER DOWNLOADS

PDF

Catalog page - Threaded Male/Female, Male/Male Spacers
