R30-3000502

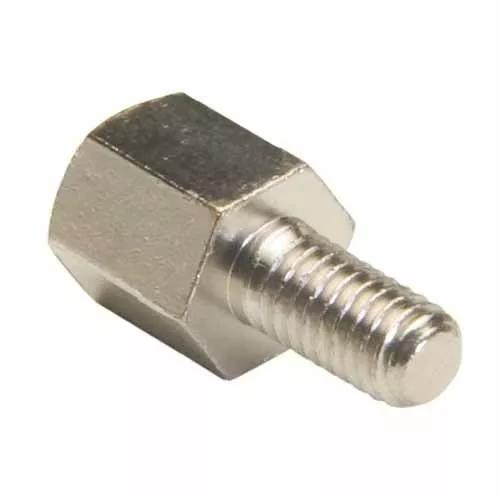

5.00mm M3 Metric M/F Threaded Hex Brass Spacer/Pillar

Hardware - Spacer (Standoff, Pillar)

  • M3 Male/Female Threaded Hexagonal Brass Spacer.
  • 5mm A/F across body, 5mm body length, 6mm male stud.
  • Nickel plating for corrosion resistance.
Add to Favorites

Technical Details

Specification

Contact Gender:

Male/Female

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Finish / Plating on Contact Surface:

Nickel

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

1.024g

Overall Dimensions (L x W x D) in mm:

11.00 x 5.00 A/F Hexagon

Body Length:

5.00mm

Male Stud Length:

6.00mm

Thread Size:

M3

Availability

42,562 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 9810
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 8772
Distributor TTI Europe
Location Europe
Quantity (Updated Daily) 6800
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 5800
Distributor Avnet Abacus
Location Europe
Quantity (Updated Daily) 4400
Distributor Anglia
Location Europe
Quantity (Updated Daily) 3785
Distributor Newark
Location USA
Quantity (Updated Daily) 1413
Distributor Newark
Location USA
Quantity (Updated Daily) 897
Distributor Farnell
Location Europe
Quantity (Updated Daily) 862
Distributor Genalog
Location Europe
Quantity (Updated Daily) 23

Questions & Answers Ask a Question

Do your metric spacers come in 0.5mm increments?

Sorry, but our metric spacers are all in 1mm length increments. Please check the Technical Drawing/Datasheet for specific sizes listed in this product range.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - R30-300.pdf

ZIP

R30-3000502 CAD Model (ZIP file containing STP and IGES)

Download

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF

REACH Harwin statement (6-Jul-2020) including 209 SVHC (25-Jun-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (16-Oct-2019) - includes all material legislations

PDF

Material composition for R30-300 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview of the Hardware products (Spacers, Terminals, Shorting Links)

OTHER DOWNLOADS

PDF

Catalog page - Threaded Male/Female, Male/Male Spacers
