R30-1611800

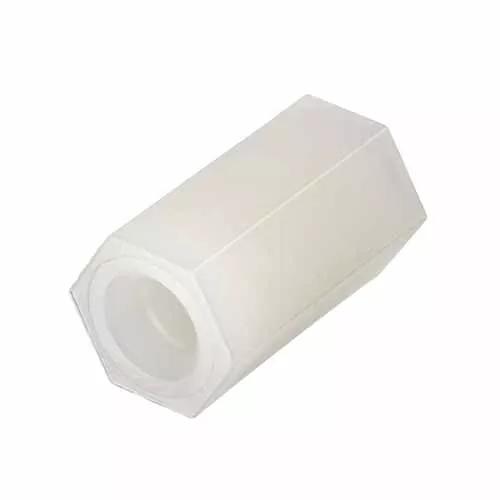

18.00mm M3 Metric Threaded Hex Plastic Spacer/Pillar

Hardware - Spacer (Standoff, Pillar)

  • M3 Threaded Hexagonal Plastic Spacer, 5.5mm A/F.
  • 18mm body length.
Add to Favorites

Technical Details

Specification

Contact Gender:

Female

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Housing Material:

Polyamide (Nylon) 66

Housing Colour:

White

Housing Material UL Rating:

UL94V-2

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.407g

Overall Dimensions (L x W x D) in mm:

18.00 x 5.50 A/F Hexagon

Body Length:

18.00mm

Thread Size:

M3

Availability

Info Circle

Low availability or made to order”: “This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Currently made to order*

* Please request minimum quantities, lead times and pricing from an authorized distributor.

Questions & Answers Ask a Question

Do your metric spacers come in 0.5mm increments?

Sorry, but our metric spacers are all in 1mm length increments. Please check the Technical Drawing/Datasheet for specific sizes listed in this product range.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - R30-161.pdf

ZIP

R30-1611800 CAD Model (ZIP file containing STP)

Download

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (6-Jul-2020) including 209 SVHC (25-Jun-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (16-Oct-2019) - includes all material legislations

PDF

Material composition for R30-161 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview of the Hardware products (Spacers, Terminals, Shorting Links)

OTHER DOWNLOADS

PDF

Catalog page - Threaded Female Spacers

PDF

Outgassing data for Harwin products (plastics)
