Home > R30-1611600
Active

R30-1611600

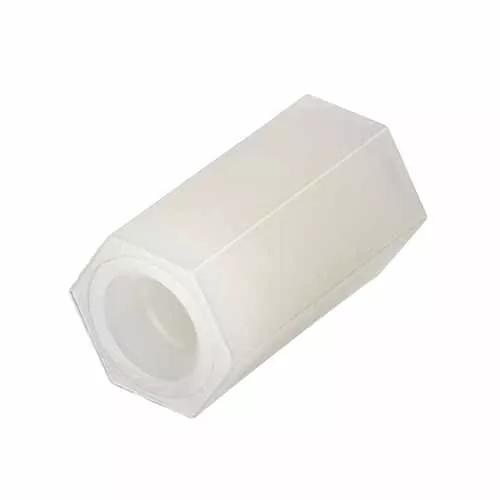

16.00mm M3 Metric Threaded Hex Plastic Spacer/Pillar

Hardware - Spacer (Standoff, Pillar)

  • M3 Threaded Hexagonal Plastic Spacer, 5.5mm A/F.
  • 16mm body length.
Add to Favorites

Technical Details

Specification

Contact Gender:

Female

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Housing Material:

Polyamide (Nylon) 66

Housing Colour:

White

Housing Material UL Rating:

UL94V-2

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.362g

Overall Dimensions (L x W x D) in mm:

16.00 x 5.50 A/F Hexagon

Body Length:

16.00mm

Thread Size:

M3

Availability

2,019 in stock

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 1256
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 457
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 300
Distributor Genalog
Location Europe
Quantity (Updated Daily) 6

Questions & Answers Ask a Question

Do your metric spacers come in 0.5mm increments?

Sorry, but our metric spacers are all in 1mm length increments. Please check the Technical Drawing/Datasheet for specific sizes listed in this product range.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - R30-161.pdf

ZIP

R30-1611600 CAD Model (ZIP file containing STP)

Download

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Material composition for R30-161 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview of the Hardware products (Spacers, Terminals, Shorting Links)

OTHER DOWNLOADS

PDF

Catalog page - Threaded Female Spacers

PDF

Outgassing data for Harwin products (plastics)
