P25-4026

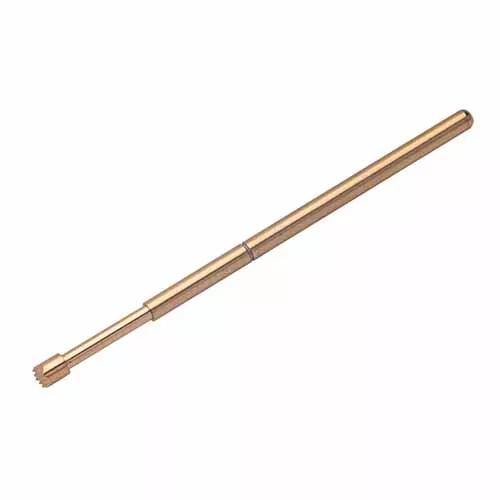

ATE Two-Part Spring Probe, 2.50mm Centres

ATE Spring Probe, Spring Contact, Test Probe

  • Two Part Spring Probe, 2.54mm (0.1″) minimum pitch, Ø1.5mm Serrated Head.
  • Gold finish on probe head and body.
  • Use with receptacle / sleeve S25-346 or S25-546.
Availability
Add to Favorites

Technical Details

Specification

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Current Rating:

3A max

Operating Temperature:

-40°C to +85°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper plunger, Phosphor Bronze shell

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.251g

Overall Dimensions (L x W x D) in mm:

33.30 x Ø1.50

Availability

1,109 in stock

Info Circle

Low availability or made to order”: “This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 1109

Questions & Answers Ask a Question

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.
