P1113SS3

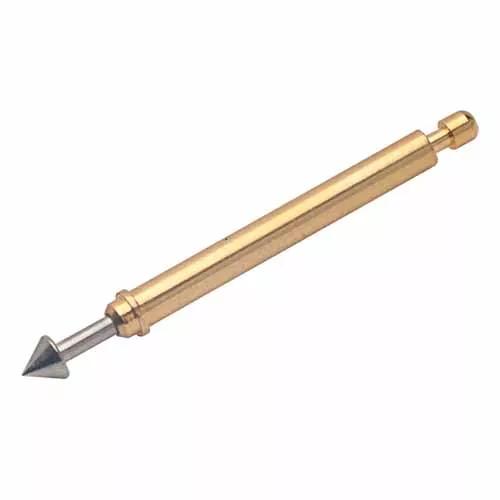

ATE One-Part Spring Probe, 3.00mm Centres
ATE Spring Probe, Spring Contact, Test Probe
2,494 in stock Check availability
4 similiar products View products
Samacsys account required
No login is required
Product Description
- One Part Spring Probe, 3mm minimum pitch, Ø2.34mm Convex Head.
- Nickel finish on probe head, Gold finish on body.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Connector Orientation:
Vertical
Connection Type:
PC Tail / Throughboard
Current Rating:
2A max
Operating Temperature:
-40°C to +85°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarising Features:
No
Number of Signal Contacts:
1
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Nickel
Base Material of Contact:
High Carbon Steel plunger, Brass shell
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
0.21g
Overall Dimensions (L x W x D) in mm:
27.00 x Ø2.55
Frequently Asked Questions Ask a Question
Is this a double or single side spring probe?
These probes are single-ended – the other end has a turned groove for wire-wrapping and soldering.
Was this answer useful?
Why is there no voltage rating for this contact?
Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.
Was this answer useful?
