M83-LML3M5N96-0000-000

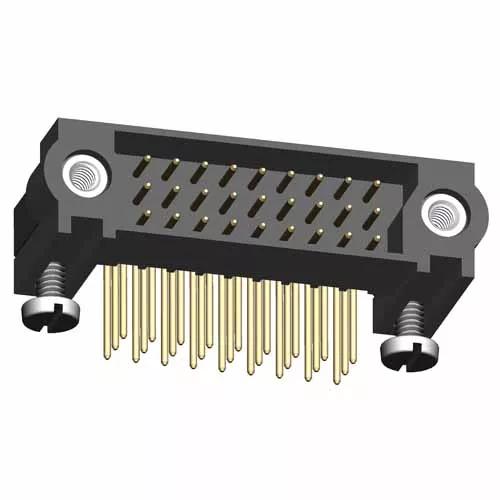

32 x 3-Row Male Horizontal Throughboard Conn. Jackscrews

2.00mm Pitch High-Reliability Connector - Datamate J-Tek 3-Row

Add to Favorites

Loading…   Check availability

4 similar products View products

Traceparts account required

Product Description

  • Triple Row, 3.5mm PC Tail connector with 8mm board mount jackscrews – 96 contacts (3 x 32).
  • Gold finish on contact area and termination. Slotted bolts provided for assembly to panel mount jackscrew.
  • For complete pin numbering or pin out information, see Component Specification C005XX.

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Male/Plug

Connector Orientation:

Horizontal

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.5mm

Current Rating:

3.3A max individual contact, 3A max simultaneous (25°C)

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Internal Thread Jackscrew with Slotted Board Mount Bolts (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

3

Number of Signal Contacts:

96

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tray

Dimensions

Individual Part Weight:

7.238g

Overall Dimensions (L x W x D) in mm:

77.00 x 11.25 x 12.35

Thread Size:

M2

Height of Connector above PCB:

8.35mm

Length of Throughboard Tail:

3.50mm
