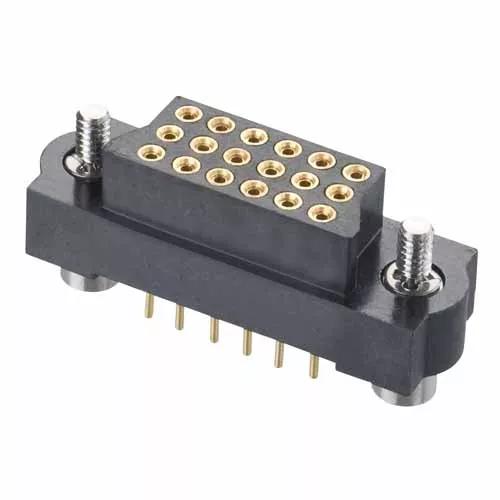

6 x 3-Row Female Vertical Throughboard Conn. Jackscrews
2.00mm Pitch High-Reliability Connector - Datamate J-Tek 3-Row
- Triple Row, 3mm PC Tail connector with Hexagonal socket head jackscrews – 18 contacts (3 x 6).
- Gold finish on contact area and termination. Accepts 2mm A/F hex (Allen) key.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
PC Tail / Throughboard
Mating Pin Size:
3.3A max individual contact, 3A max simultaneous (25°C)
-55°C to +125°C
Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews:
Floating Jackscrew with Hex Socket Head (Standard Gender)
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Beryllium Copper contact clip, Brass shell
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
25.00 x 8.00 x 11.40
Height of Connector above PCB:
Length of Throughboard Tail:
Frequently Asked Questions Ask a Question
What torque value should be used for these jackscrews?
The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).
Was this answer useful?
RoHS Compliant (2015/863/EU) with Exemption 6cPDF Download
Want to talk to someone?
Contact one of our technical experts via “Ask an Expert”, or book a 30 minute technical consultation.
ECAD Download Options
Download 3D CAD product models directly from Harwin – STP and IGES.Download
No login is required.
