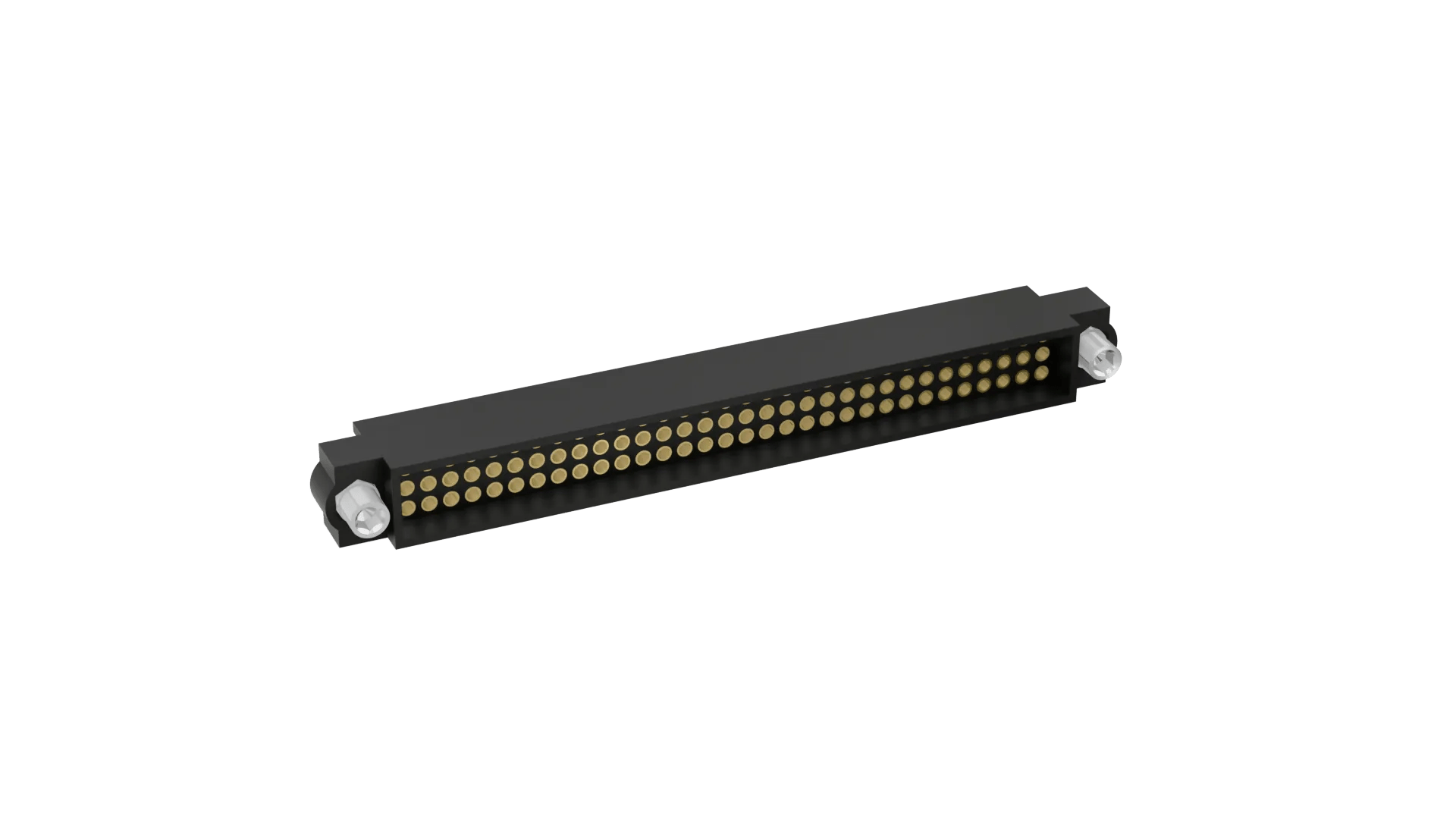

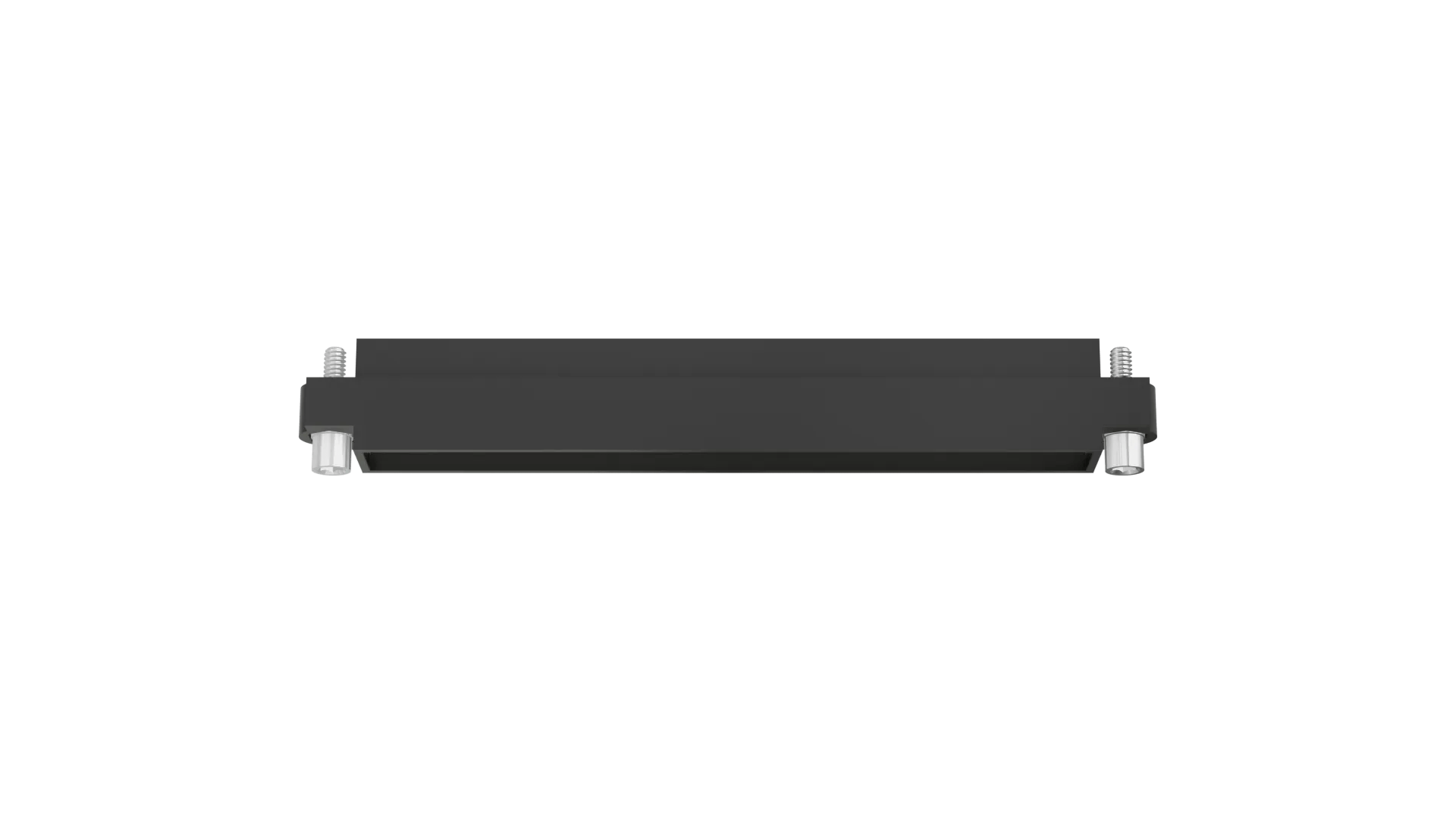

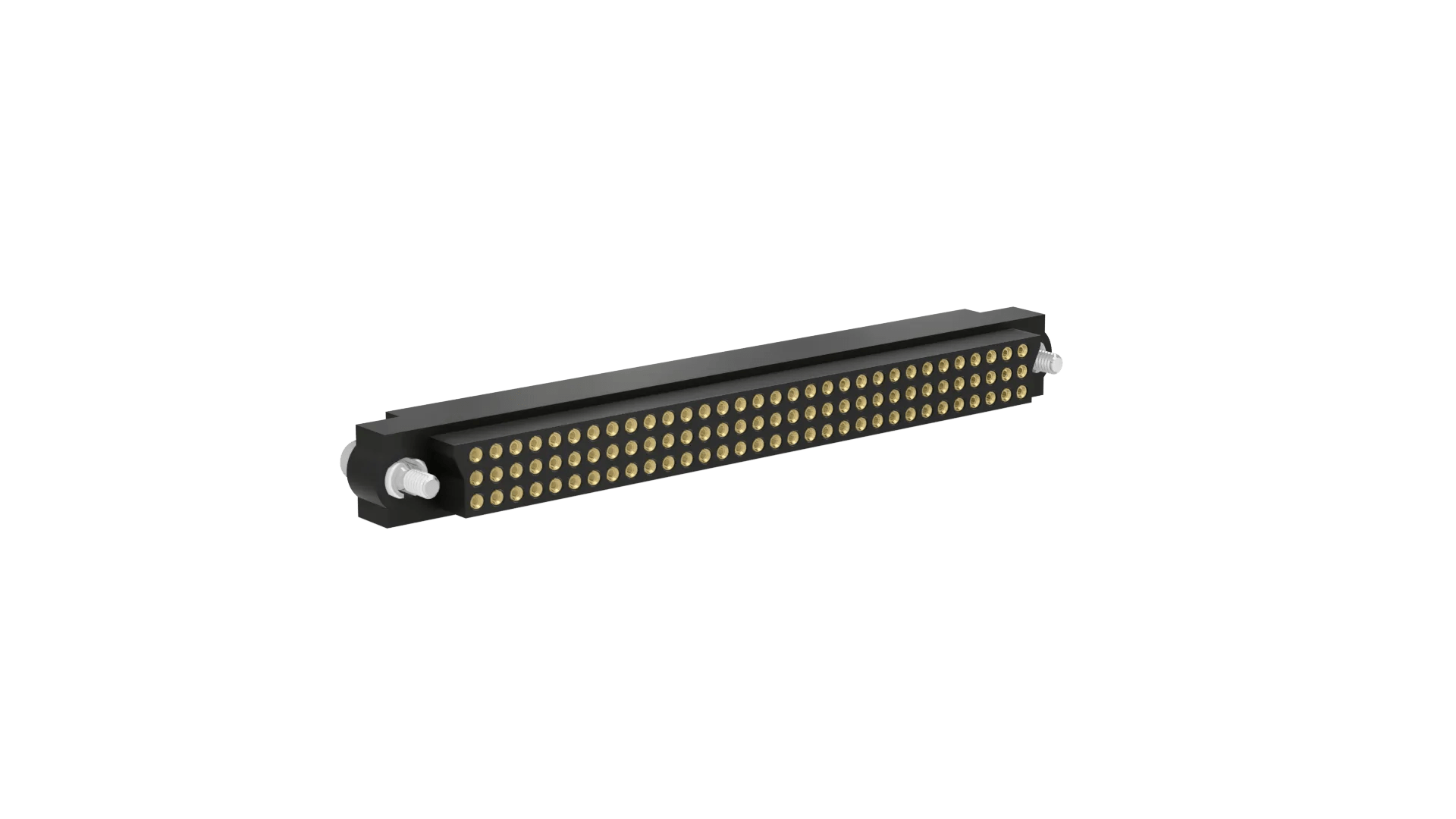

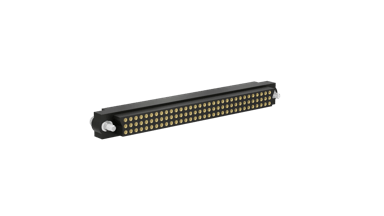

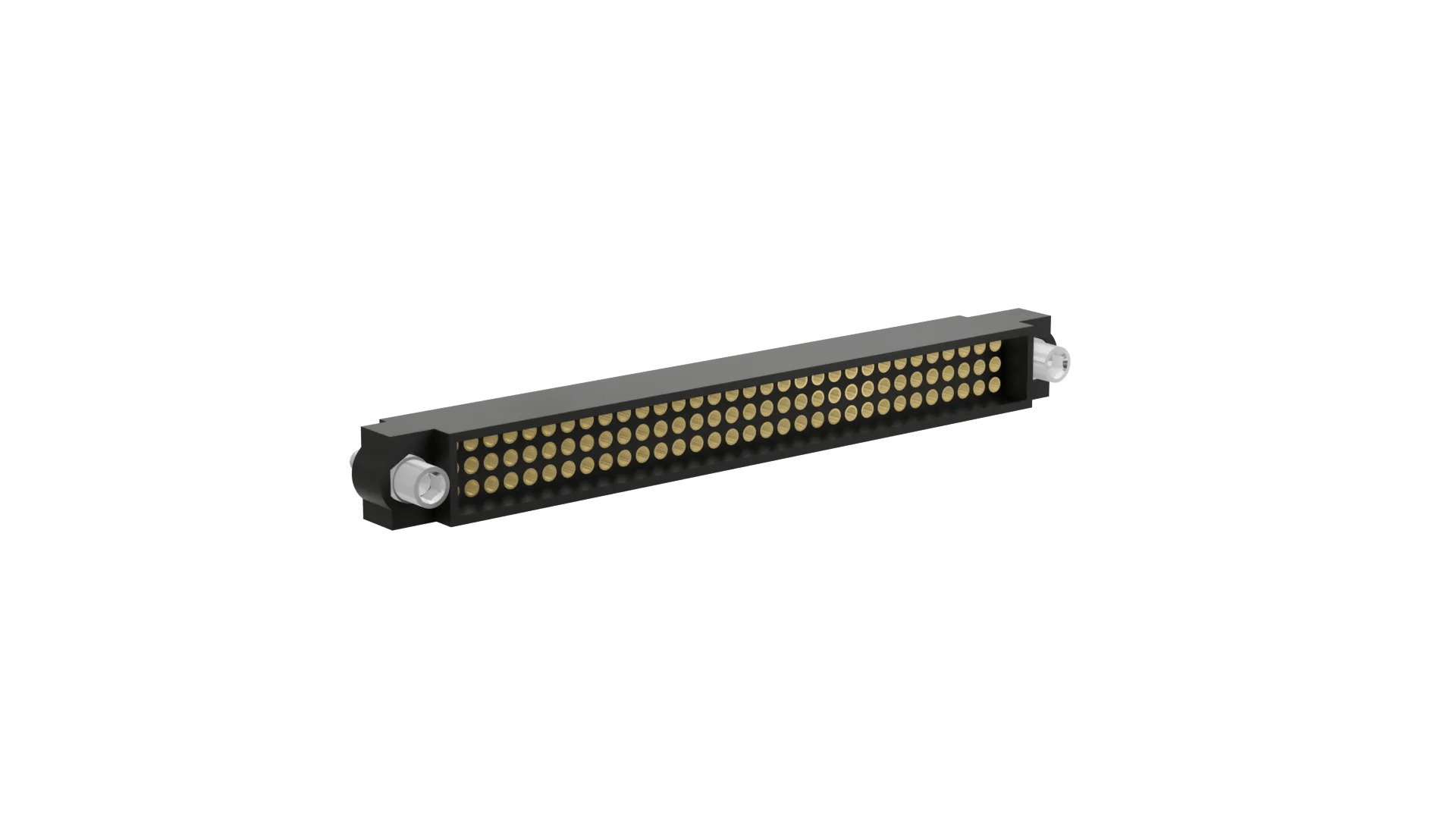

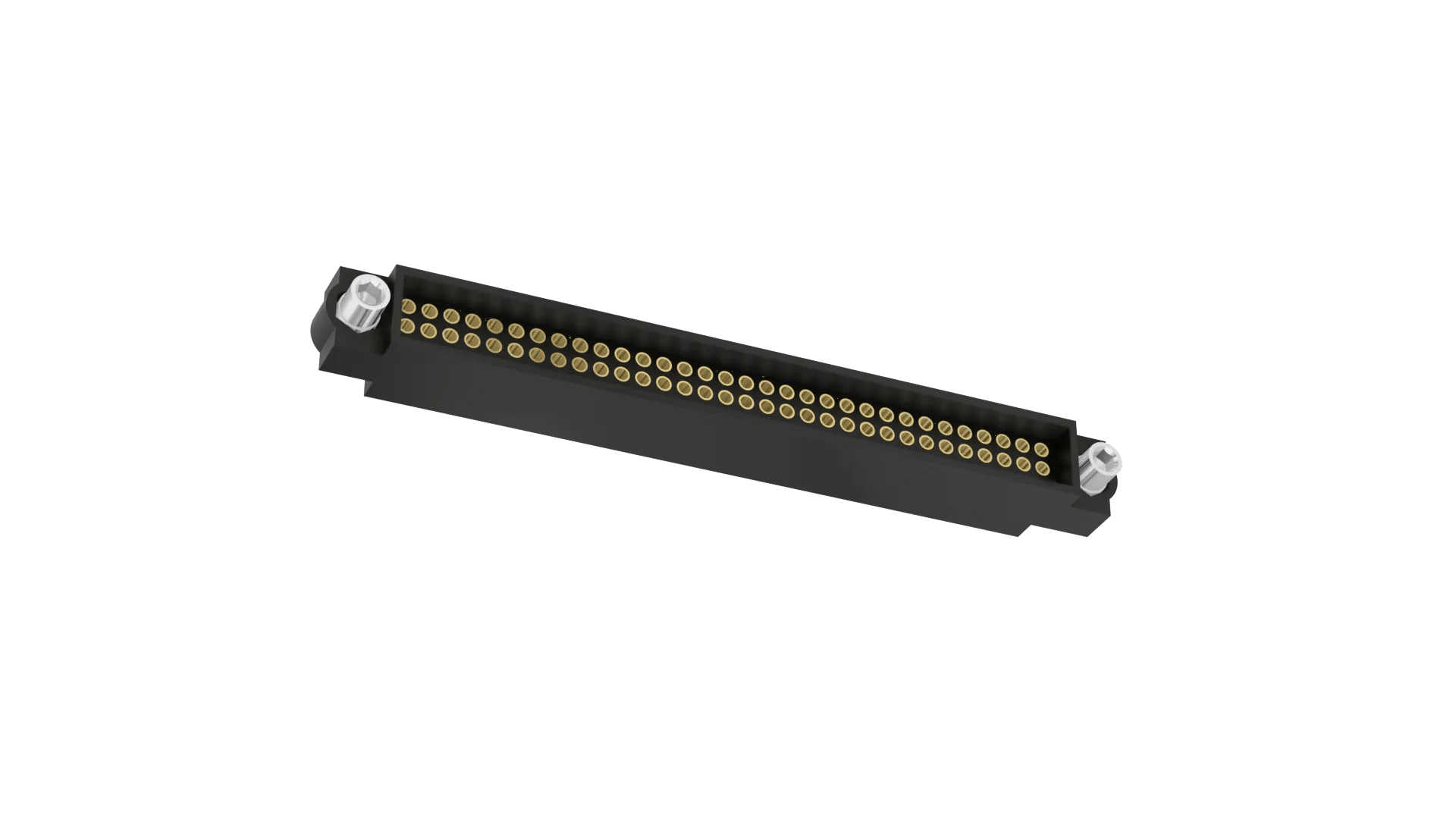

32 x 3-Row Female 22AWG Cable Conn. Kit, Jackscrews
2.00mm Pitch High-Reliability Connector - Datamate J-Tek 3-Row
- Complete kit: Triple Row housing with hexagonal socket jackscrews fitted, 96 x barrel crimp contacts loose – Gold finish on contact area and termination.
- Large Bore – suitable for 22AWG cable (Ø1.1mm max insulation). Spare contacts = M83-0110005.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
Cable Conductor Size:
Mating Pin Size:
3.3A max individual contact, 3A max simultaneous (25°C)
-55°C to +125°C
Style of Jackscrews:
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Beryllium Copper contact clip, Brass shell
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
77.00 x 8.00 x 11.40
530 in stock
Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.
Stock held by Harwin: contact distributor to purchase.
Questions & Answers Ask a Question
What potting material do you recommend using for backpotting this connector?
We currently recommend 3 materials that we have tried – although it’s very likely that many others are entirely suitable. Our primary recommendation, that we use on our complete cable assemblies, is Stycast 2651MM with Catalyst 9. We have also used Robnor Resins PX439XS/BK/250 and Epoxies Innovative Bonding Solutions 50-3122RBK. You can find more information on backpotting our connectors and links to the epoxy suppliers on our blog post What is Backpotting?
What torque value should be used for these jackscrews?
The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).
Do you need an insertion tool to insert the contacts into the connector?
Yes, you do need an insertion tool, which will allow you to push directly onto the rear of the contact to get it fully engaged into the housing. The tool you need is Z80-280 (also listed in the Accessories and Tooling at the bottom of this product page). The instruction sheet for this tool is IS-25, and you can also see it in use in the Datamate Assembly video.
M83-LFD1F2N96-0000-000 CAD Model (ZIP file containing STP)Download
Test Report HT004 - Datamate J-Tek Environmental - Vibration, Shock, Bump, Acceleration and other tests
Test Report HT016 - Datamate L-Tek Female Crimp detailed Mechanical Forces and Contact Resistance
Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews
