M80-FCPF5F1-08-0150L
8 Pos. Female SIL 10AWG Cable Assembly, 150mm, single-end, Jackscrew
4.00mm Pitch High-Reliability Connector - Datamate Power
3 in stock Check availability
3 similiar products View products
Samacsys account required
No login is required
Product Description

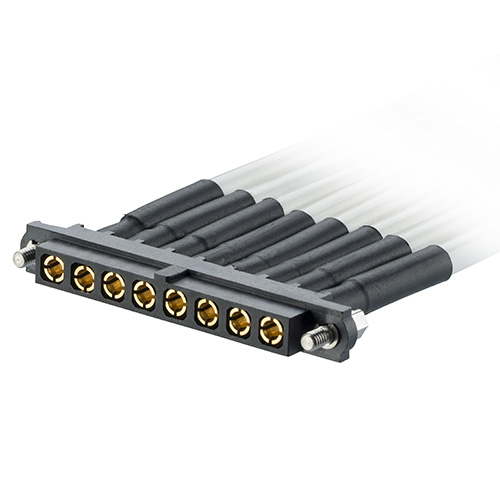

- Female Single-Ended with white 10 AWG cable, 150mm (6″) – 8 contacts. Fitted with floating jackscrews, hex slotted head. Gold finish on connector contact area.
- Manufactured with the M80-4000000F1-08-PF5-00-000 female Single Row solder connector kit. Gold finish on contact areas.
- For complete pin numbering or pin out information, see Component Specification C005XX.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
4.00mm (0.157")
Contact Gender:
Female/Socket/Jack
Connector Orientation:
Straight
Connection Type:
Cable Assembly
Cable Conductor Size:
10AWG
Current Rating:
40A max per contact
Operating Temperature:
-55°C to +125°C
Style of Jackscrews:
Floating Jackscrew with Hex Slotted Head (Standard Gender)
Polarising Features:
Yes
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
1
Number of Special (Power or Coax) Contacts:
8
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Beryllium Copper
Housing Material:
PPS
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
66.029g
Overall Dimensions (L x W x D) in mm:
150.30 x 42.00 x 5.50
Thread Size:
M2
Mating Profiles:
Frequently Asked Questions Ask a Question
What torque value should be used for these jackscrews?
The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).
Was this answer useful?
Can I use a Metal Backshell (M80-945 or M80-946) with this connector?
Sorry no, I’m afraid the metal backshells are not compatible with Datamate Mix-Tek connectors fitted with 10AWG High Power contacts. You will need to specify an alternative contact from the standard power contacts (32x or M80-32x), one that uses 12 to 20AWG cable. Do please contact our Experts if you need assistance specifying an alternative.
Was this answer useful?
