M80-9463602

M80-9463602

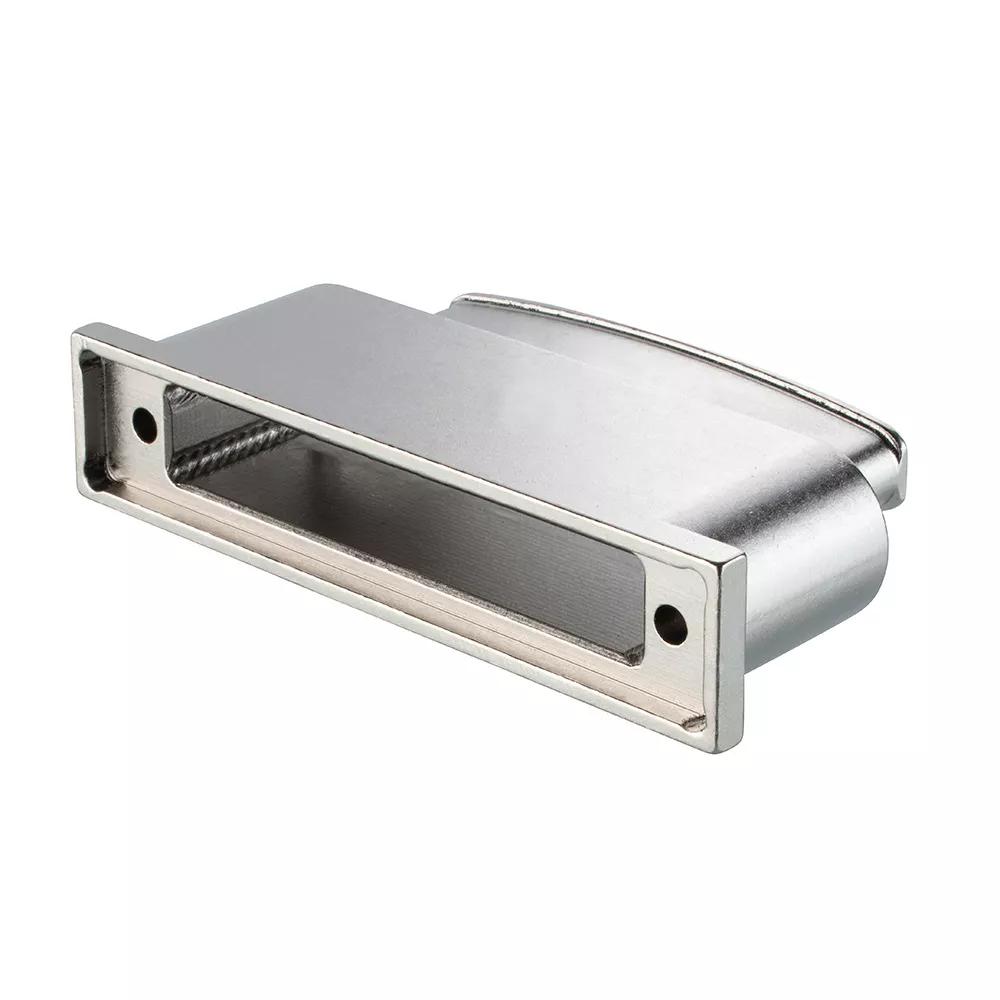

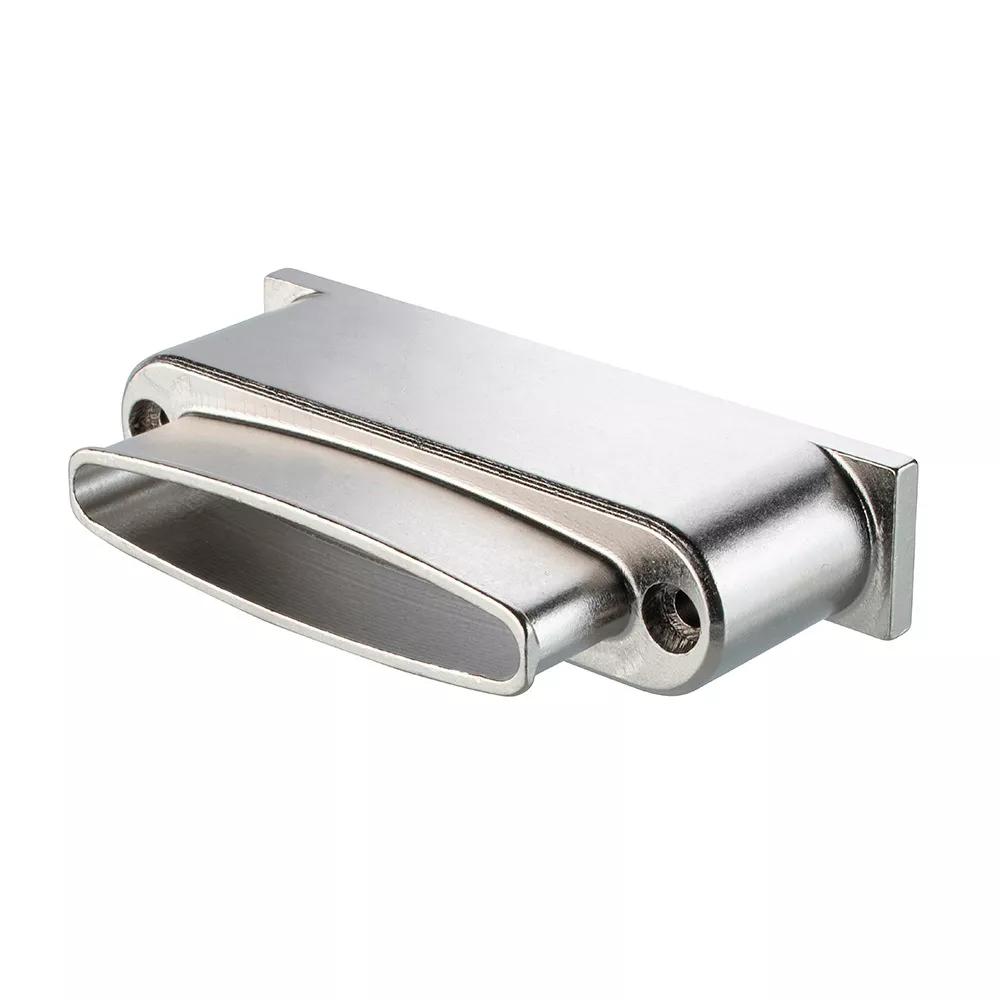

18+18 Pos. Female Metal Backshell for J-Tek or Mix-Tek, Jackscrews

HRi
HRi
HRi
HRi
HRi
HRi
HRi
HRi

Traceparts account required

M80-9463602

18+18 Pos. Female Metal Backshell for J-Tek or Mix-Tek, Jackscrews


2.00mm Pitch High-Reliability Connector - Datamate

  • Female kit includes aluminium alloy backshell (nickel plated), 2 x hex socket jackscrew, 4 x e-clip (2 as spare).

  • For use with female cable connectors, both J-Tek and Mix-Tek designs. Suitable for J-Tek (all signal contacts) with 36 (18+18) contacts, or equivalent sized Mix-Tek connectors. If using with a double-ended cable assembly, will need to be assembled on the cable before both connectors are fitted to the cables.

  • Accessory kit only - connectors to be purchased separately. BAND-IT tie M80-9470000 or M80-9480000 to be purchased separately (for attaching braid to rear of connector, see instruction sheet IS-42).

View Technical Details & Downloads


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Product Change Notifications

Technical Documentation

Product Information

Test Reports

Environmental Compliance

Technical Details

Product Characteristics

  • End Stackable:

    No

  • Style of Jackscrews:

    Screw Fixing (floating) with Hex Socket Head

  • Number of Rows:

    2

  • Connector Orientation:

    Straight

  • Country of Origin:

    GB

  • Side Stackable:

    No

  • Number of Signal Contacts:

    36

  • Operating Temperature:

    -55°C to +125°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Cuttable:

    No

Materials

  • Housing Material:

    Aluminium Alloy

  • Packaging Style:

    Bulk/Loose

  • Housing Colour:

    Nickel

Dimensions

  • Contact Pitch:

    2.00mm/4.00mm (0.079"/0.157")

  • Weight:

    15.218g

  • Dimensions:

    50.20 x 30.00 x 10.70

  • Thread Size:

    M2

Downloads

    Product Change Notifications

  • Product Change Notification 20-Jan-2020 - M80-947-948-Band-it-ties

  • Technical Documentation

  • Technical Drawing / Datasheet - M80-946.pdf

  • C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)

  • C049XX Component Specification - Cable Assembly Specifications for all HRi products

  • Product Information

  • Product Training Module - Overview of the Datamate Metal Backshells range

  • Product Training Module - Cable Connectors and Assemblies from Harwin

  • Product Training Module - Panel Mount with Datamate

  • Product Training Module - Cable Products from Harwin

  • IS-42 - Datamate Metal Backshells M80-945 + M80-946 Instruction Sheet

  • Distributor part numbers for suitable cables for Datamate + Gecko + M300 & Kona

  • Product Datasheet - Datamate range: signal connectors (HRi)

  • Product Datasheet - Datamate Mix-Tek range (HRi)

  • Test Reports

  • Test Report HT079 - Datamate Backshells and Shielded Cables Attenuation Testing

  • Environmental Compliance

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Environmental Legislation Statement - includes all material legislations

  • Material Composition for M80-946 series

  • RoHS - M80-9463602
