Home > M80-8510622
Active Product

M80-8510622

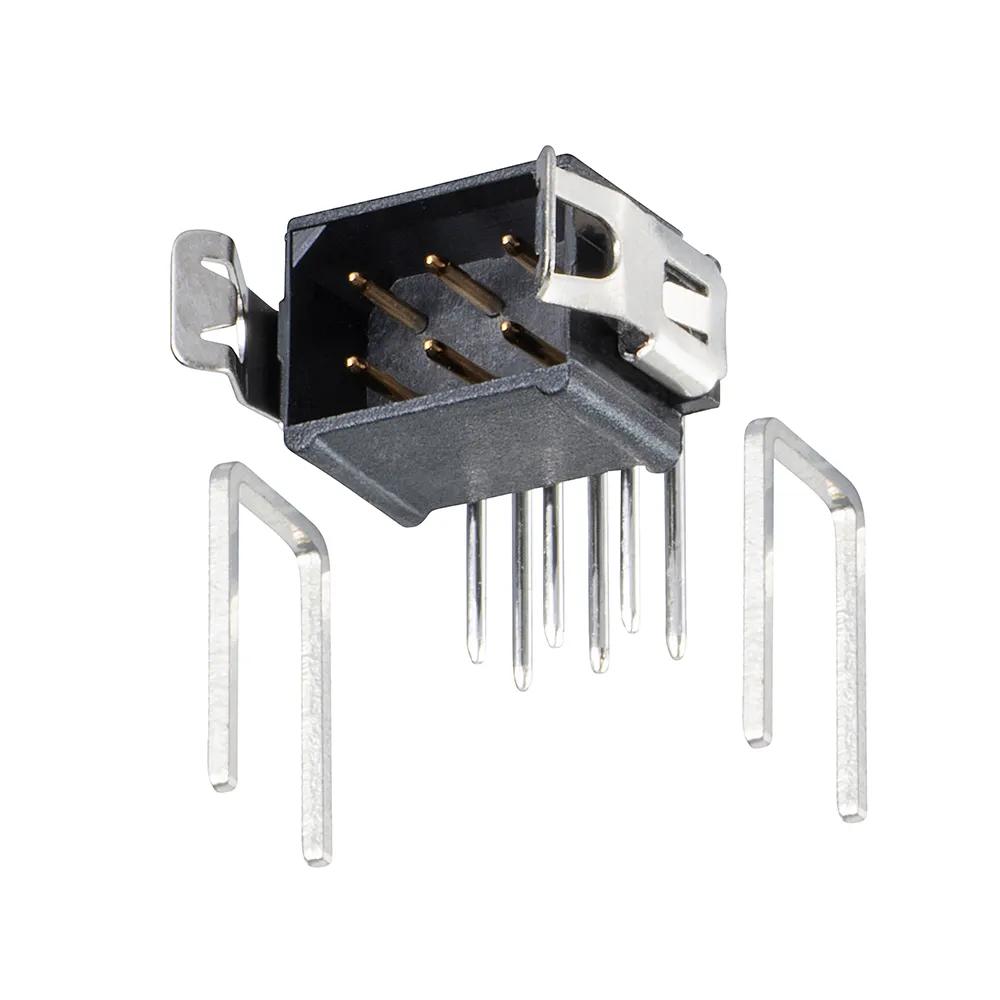

3+3 Pos. Male DIL Horizontal Throughboard Conn. Latches

2.00mm Pitch High-Reliability Connector - Datamate L-Tek

Add to Favorites

Made to order

8 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • Double Row, 6 (3+3) x 3mm PC Tail contacts – Gold finish on contact area, Tin/Lead finish on termination.
  • Locking latches – tooling required to separate mated connectors. Supplied with strain relief straps (M80-0030006).
  • For complete pin numbering or pin out information, see Component Specification C005XX.

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Male/Plug

Connector Orientation:

Horizontal

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.5mm

Current Rating:

3.3A max individual contact, 3A max simultaneous (25°C)

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 235°C for 5 seconds

Style of Latches:

Locking Latch

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

6

Materials

Finish / Plating on Termination:

Tin/Lead

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

0.61g

Overall Dimensions (L x W x D) in mm:

10.10 x 8.85 x 11.10

Height of Connector above PCB:

5.85mm

Length of Throughboard Tail:

3.00mm

Frequently Asked Questions Ask a Question

What are the U-shaped plugs/staples supplied with this connector?

These U-shaped plugs (that look like staples) are throughboard hold-down straps, supplied with all horizontal male Datamate L-Tek. You can see them shown red in the inset pictures on the relevant Datamate L-Tek catalog pages, and we have a Product Training Module on their use. It can also be used with vertical male L-Tek, purchased separately under part number M80-0030006.

The Technical Drawing will show the 4 holes required for using these straps in your assembly, and they can be either soldered to the PCB on the underside, or with pin-in-paste soldering.

Was this answer useful?

Do you have a tool to help separate this connector when it is latched to the mating half?

The tool you need is the Z80-299. This is a kit of a handle, cross-bars and two latch separators, and has instructions to help you assemble the tool to the right size for your connector.
