Home > M80-7036322
Active Product

M80-7036322

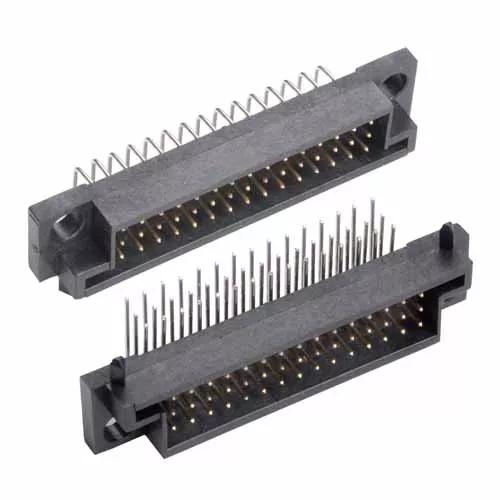

21 x 3-Row Male Horizontal Throughboard Conn. No Jackscrews

2.00mm Pitch Datamate 3-Row Connector (Legacy Series)

Add to Favorites

Loading…   Check availability

5 similar products View products

Traceparts account required

Product Description

  • Triple Row, 63 (3 x 21) x 2.3mm PC Tail contacts, no jackscrews – Gold finish on contact area, Tin/Lead finish on termination.
  • 2.00mm Pitch High-Reliability Datamate connector system.
  • For complete pin numbering or pin out information, see Component Specification C017XX.

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Male/Plug

Connector Orientation:

Horizontal

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.5mm

Current Rating:

3.3A max individual contact, 3A max simultaneous (25°C)

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 235°C for 5 seconds

Style of Jackscrews:

None fitted

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

3

Number of Signal Contacts:

63

Materials

Finish / Plating on Termination:

Tin/Lead

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 46

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tray

Dimensions

Individual Part Weight:

3.879g

Overall Dimensions (L x W x D) in mm:

55.00 x 11.15 x 12.00

Height of Connector above PCB:

9.00mm

Length of Throughboard Tail:

2.60mm
