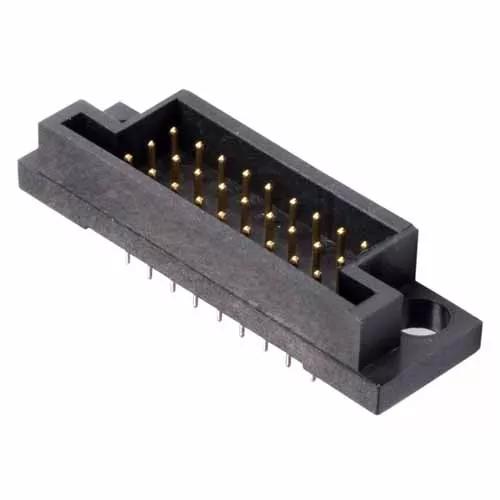

17 x 3-Row Male Vertical Throughboard Conn. No Jackscrews
2.00mm Pitch Datamate 3-Row Connector (Legacy Series)
- Triple Row, 51 (3 x 17) x 3mm PC Tail contacts, no jackscrews – Gold finish on contact area, Tin finish on termination.
- 2.00mm Pitch High-Reliability Datamate connector system.
- For complete pin numbering or pin out information, see Component Specification C017XX.
EU RoHS Status:
PC Tail / Throughboard
Mating Pin Size:
3.3A max individual contact, 3A max simultaneous (25°C)
-55°C to +125°C
Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews:
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 46
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
47.00 x 9.00 x 9.40
Height of Connector above PCB:
Length of Throughboard Tail:
329 in stock
Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
M80-70251xx CAD Model (ZIP file containing STP)Download
Test Report HT004 - Datamate J-Tek Environmental - Vibration, Shock, Bump, Acceleration and other tests
