Home > M80-7006342
Active

M80-7006342

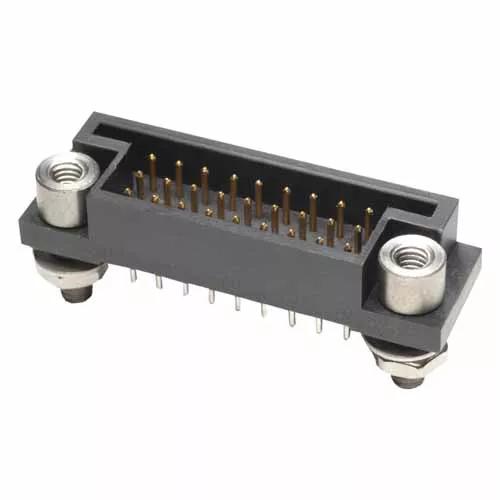

21 x 3-Row Male Vertical Throughboard Conn. Jackscrews

2.00mm Pitch Datamate 3-Row Connector (Legacy Series)

  • Triple Row, 63 (3 x 21) x 3mm PC Tail contacts with board-mount jackscrews – Gold finish on contact area, Tin finish on termination.
  • Hexagonal nuts and washers provided for assembly to panel mount stud.
  • For complete pin numbering or pin out information, see Component Specification C017XX.
Availability Download
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.5mm

Current Rating:

3A

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Jackscrew with Board Mount

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

3

Number of Signal Contacts:

63

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 46

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tray

Dimensions

Individual Part Weight:

5.139g

Overall Dimensions (L x W x D) in mm:

55.00 x 9.00 x 11.85

Thread Size:

M2.5

Height of Connector above PCB:

6.10mm

Length of Throughboard Tail:

3.00mm

Availability

Popular product
Distributor Location Quantity
Anglia
Europe
Status45
Genalog
Europe
Status30
Harwin
Global
Status15
Mouser Electronics Inc
Global
Status42

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M80-700.pdf

ZIP

M80-70063xx CAD Model (ZIP file containing STP)

Download
PDF

C017XX Component Specification - Datamate M80-7XX Legacy 3-Row connectors

TEST REPORTS

PDF

Test Report HT001 - Datamate Mechanical Endurance - number of cycles, up to 10,000

PDF

Test Report HT002 - Datamate Voltage Proof, Voltage Flashover, and Insulation Resistance

PDF

Test Report HT004 - Datamate J-Tek Environmental - Vibration, Shock, Bump, Acceleration and other tests

PDF

Test Report HT015 - Datamate Environmental (Vibration, Shock, Bump) - J-Tek and 101Lok

PDF

Test Report HT017 - Datamate L-Tek Contact Resistance after 3 and 15 years Artificial Aging

PDF

Test Report HT019 - Datamate Frequency Testing to EIA-364-108-2000(2007), USB2.0

PDF

Test Report HT025 - Datamate L-Tek Environmental - Detailed Vibration, Shock and Bump

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (6-Jul-2020) including 209 SVHC (25-Jun-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

PDF

Material composition for M80-700 series
