M80-7005142

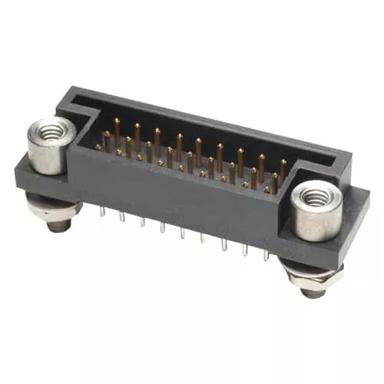

17 x 3-Row Male Vertical Throughboard Conn. Jackscrews

2.00mm Pitch Datamate 3-Row Connector (Legacy Series)

  • Triple Row, 51 (3 x 17) x 3mm PC Tail contacts with board-mount jackscrews – Gold finish on contact area, Tin finish on termination.
  • Hexagonal nuts and washers provided for assembly to panel mount stud.
  • For complete pin numbering or pin out information, see Component Specification C017XX.
Availability
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.5mm

Current Rating:

3.3A max individual contact, 3A max simultaneous (25°C)

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Internal Thread Jackscrew with Board Mount Stud and Slotted Nuts (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

3

Number of Signal Contacts:

51

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 46

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tray

Dimensions

Individual Part Weight:

4.629g

Overall Dimensions (L x W x D) in mm:

47.00 x 9.00 x 11.85

Thread Size:

M2.5

Height of Connector above PCB:

6.10mm

Length of Throughboard Tail:

3.00mm

Availability

353 in stock

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 165
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 99
Distributor Farnell
Location Europe
Quantity (Updated Daily) 37
Distributor Newark
Location USA
Quantity (Updated Daily) 37
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 15
