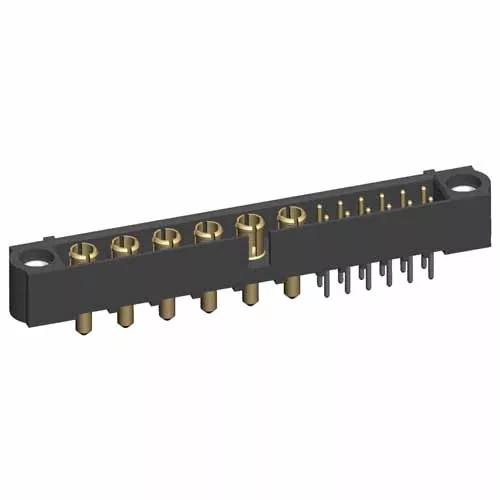

12+6 Pos. Male Signal+Power Vertical Throughboard Conn. Jackscrews
2.00mm/4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek
Made to order
1 similiar products View products
- Jackscrews, 12 x signal and 6 x power contacts assembled for vertical PCB connection. 3mm length PC Tail signal contacts, 3.5mm length PC Tail power contacts.
- Gold finish on contact area and termination.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
PC Tail / Throughboard
Mating Pin Size:
Signal = 3.3A max individual contact, 3A max simultaneous; Power = 20A max per contact
-55°C to +125°C
Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews:
Internal Thread Jackscrew (Standard Gender)
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Number of Special (Power or Coax) Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Phosphor Bronze (signal), Beryllium Copper (power)
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
46.00 x 6.00 x 9.05
Height of Connector above PCB:
Length of Throughboard Tail:
3.30mm & 3.50mm
Frequently Asked Questions Ask a Question
What torque value should be used for these jackscrews?
The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).
Was this answer useful?
RoHS Compliant (2015/863/EU) with Exemption 6cPDF Download
