M80-5T10000M3-06-000-00-000

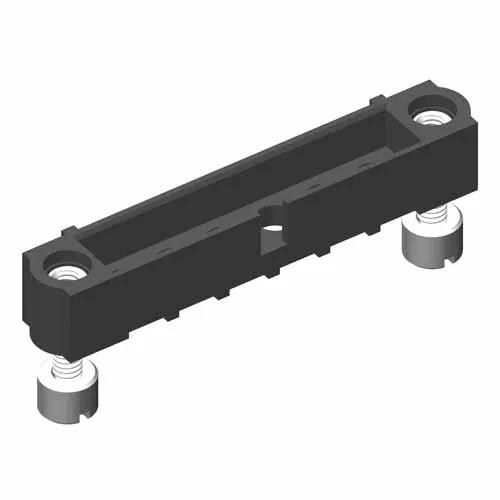

6 Pos. Male SIL Vertical Housing, Jackscrews
2.00mm/4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek
Loading… Check availability
4 similar products View products
Traceparts account required
Product Description
- Jackscrews + 5mm board mount (with slotted nuts), 6 x Special contact (coax or power) spaces left empty, housing for vertical PCB connection. For spare board mount nuts, order M80-2130000B.
- Special PC Tail contacts should be fitted by Harwin approved contractor only. Gold finish on contact area and termination.
- For complete pin numbering or pin out information, see Component Specification C005XX.
Traceparts account required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
4.00mm (0.157")
Contact Gender:
Male/Plug
Connector Orientation:
Vertical
Connection Type:
PC Tail / Throughboard
Current Rating:
Dependent on assembled contacts
Operating Temperature:
-55°C to +125°C
Style of Jackscrews:
Internal Thread Jackscrew with Board Mount Stud and Slotted Nuts (Standard Gender)
Polarising Features:
Yes
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
1
Number of Special (Power or Coax) Contacts:
6
Materials
Housing Material:
PPS
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Tube
Dimensions
Individual Part Weight:
1.716g
Overall Dimensions (L x W x D) in mm:
34.00 x 6.00 x 10.55
Thread Size:
M2
Height of Connector above PCB:
5.55mm
Mating Profiles:
Frequently Asked Questions Ask a Question
Are the board/panel mount nuts supplied with this connector, or do I have to order them separately?
Yes, these connectors are supplied with the board/panel mount nuts – they will come packaged in a separate bag. If you need some spares, you can use part number M80-2130000B to order more.
