Active

M80-5L21605M7-03-314-00-000

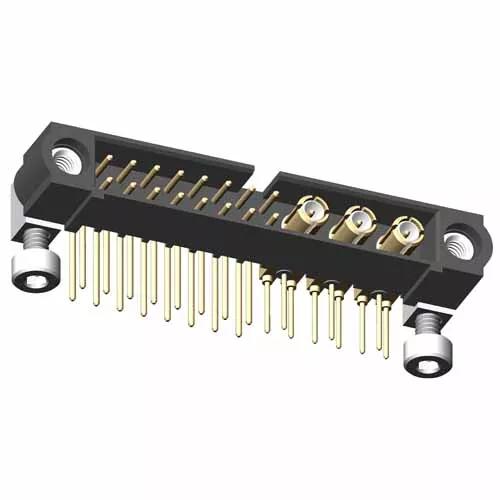

16+3 Pos. Male Signal+Coax Horizontal Throughboard Conn. Jackscrews

2.00mm/4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek

  • Jackscrews + 5mm board mount (with hex socket head bolt), 16 x signal and 3 x coax contacts assembled for horizontal PCB connection. 4.5mm length PC Tail signal and coax contacts.
  • Gold finish on contact area and termination. For spare board mount bolts, order M80-2320000B.
  • For complete pin numbering or pin out information, see Component Specification C005XX.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm/4.00mm (0.079"/0.157")

Contact Gender:

Male/Plug

Connector Orientation:

Horizontal

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.5mm (signal)

Current Rating:

Signal = 3.3A max individual contact, 3A max simultaneous; Coax = 0.5A per contact

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Internal Thread Jackscrew with Hex Socket Board Mount Bolts (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

Mixed

Number of Signal Contacts:

16

Number of Special (Power or Coax) Contacts:

3

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze (signal), Phosphor Bronze inner contact + Beryllium Copper outer shell (coax)

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

3.548g

Overall Dimensions (L x W x D) in mm:

38.00 x 8.60 x 9.50

Thread Size:

M2

Height of Connector above PCB:

6.00mm

Length of Throughboard Tail:

4.50mm

Availability

7 in stock

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 7

Questions & Answers Ask a Question

Are the board/panel mount bolts supplied with this connector, or do I have to order them separately?

Yes, these connectors are supplied with the board/panel mount bolts – they will come packaged in a separate bag. If you need some spares, you can use part number M80-2320000B to order more.

What torque value should be used for these jackscrews?

The torque value for board or panel mounting is 21±2cmN. The torque value for mating jackscrews is 23cmN max. Both values are given in the Component Specification C005xx (page 14).
