M80-5000000M2-04-PM2-00-000

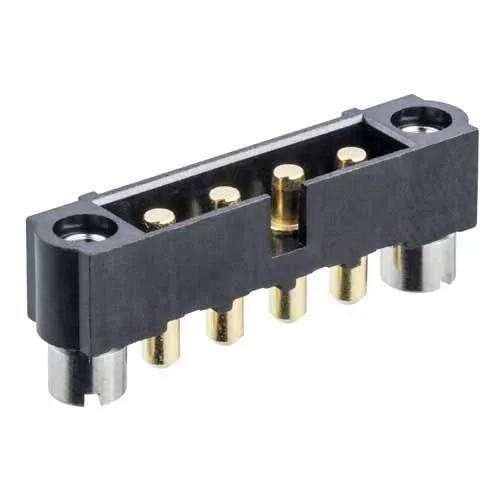

4 Pos. Male SIL Vertical Throughboard Conn. Jackscrews
4.00mm Pitch High-Reliability Connector - Datamate Power
Loading… Check availability
6 similar products View products
Traceparts account required
Product Description
- Jackscrews + 3.5mm board mount (with slotted nuts), 4 x high power contacts assembled for vertical PCB connection. For spare board mount nuts, order M80-2130000B.
- Rated to 40A nominal, 5mm length PC Tail. Gold finish on contact area and termination.
- For complete pin numbering or pin out information, see Component Specification C005XX.
Traceparts account required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
4.00mm (0.157")
Contact Gender:
Male/Plug
Connector Orientation:
Vertical
Connection Type:
PC Tail / Throughboard
Current Rating:
40A max per contact
Operating Temperature:
-55°C to +125°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews:
Internal Thread Jackscrew with Board Mount Stud and Slotted Nuts (Standard Gender)
Polarising Features:
Yes
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
1
Number of Special (Power or Coax) Contacts:
4
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Beryllium Copper
Housing Material:
PPS
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Tube
Dimensions
Individual Part Weight:
2.757g
Overall Dimensions (L x W x D) in mm:
26.00 x 6.00 x 10.55
Thread Size:
M2
Height of Connector above PCB:
5.55mm
Length of Throughboard Tail:
5.00mm
Mating Profiles:
Frequently Asked Questions Ask a Question
Are the board/panel mount nuts supplied with this connector, or do I have to order them separately?
Yes, these connectors are supplied with the board/panel mount nuts – they will come packaged in a separate bag. If you need some spares, you can use part number M80-2130000B to order more.
Was this answer useful?
What torque value should be used for these jackscrews?
The torque value for board or panel mounting is 21±2cmN. The torque value for mating jackscrews is 23cmN max. Both values are given in the Component Specification C005xx (page 14).
Was this answer useful?
