6+4 Pos. Female Signal Vertical Throughboard Conn. Jackscrews
2.00mm/4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek

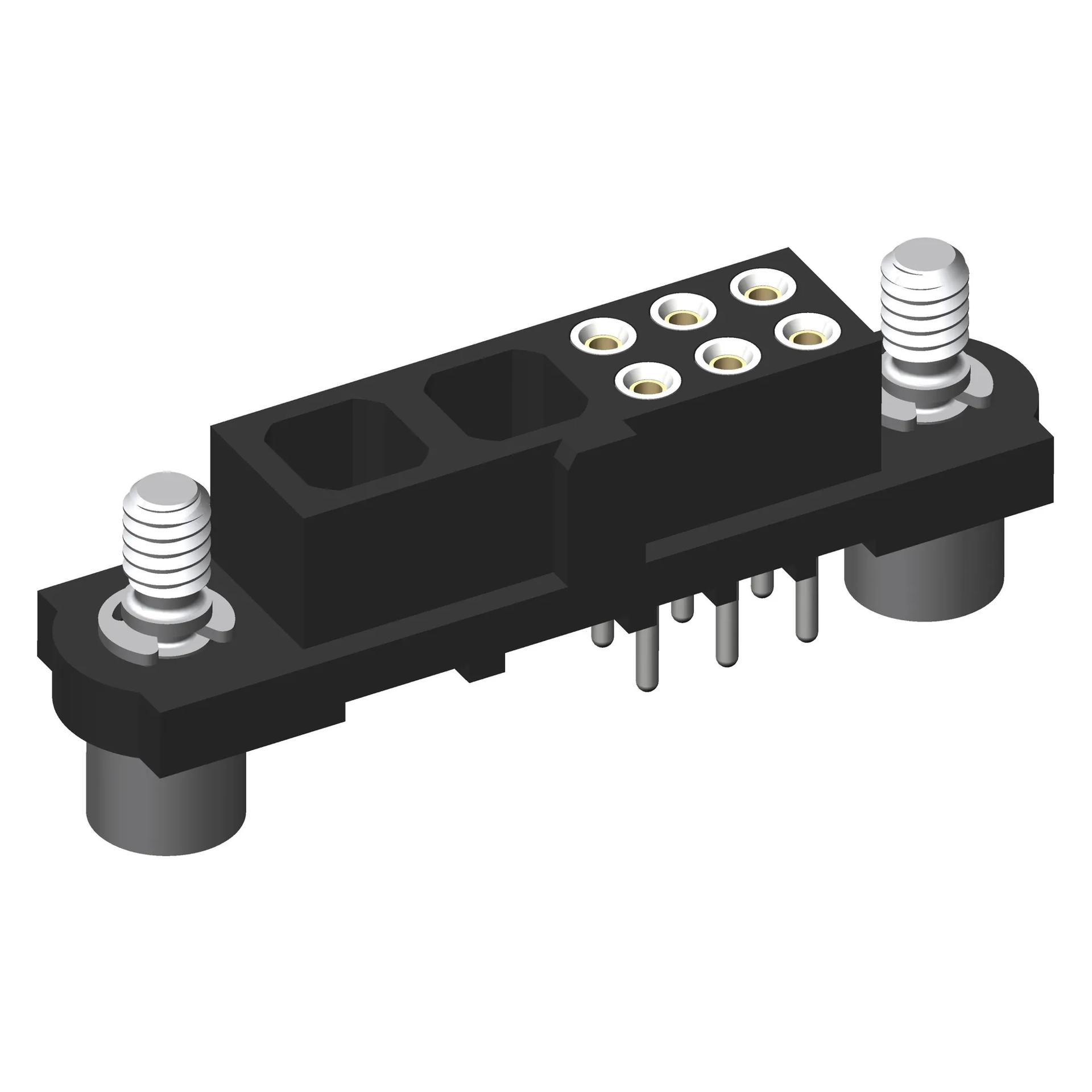

- Hex socket head (Allen) jackscrews, 6 x signal contacts assembled for vertical PCB connection. 2 x Special contact (coax or power) spaces left empty. 3mm length PC Tail signal contacts.
- Gold finish on contact area, Tin/Lead finish on termination.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
PC Tail / Throughboard
Mating Pin Size:
3.3A max individual contact, 3A max simultaneous (25°C)
-55°C to +125°C
Max Solder Temperature: 235°C for 5 seconds
Style of Jackscrews:
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Number of Special (Power or Coax) Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Beryllium Copper contact clip + Brass shell
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
24.00 x 5.50 x 8.50
Height of Connector above PCB:
Length of Throughboard Tail:
2 in stock
Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
M80-4T10601F2-00-000-02-000 CAD Model (ZIP file containing STP and IGES)Download
Test Report HT004 - Datamate J-Tek Environmental - Vibration, Shock, Bump, Acceleration and other tests
Test Report HT020 - Datamate Mix-Tek Special Contacts - Environmental, Mechanical and Electrical
