M80-4S13601FJ-01-301-01-301

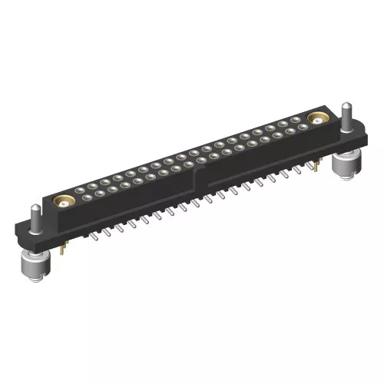

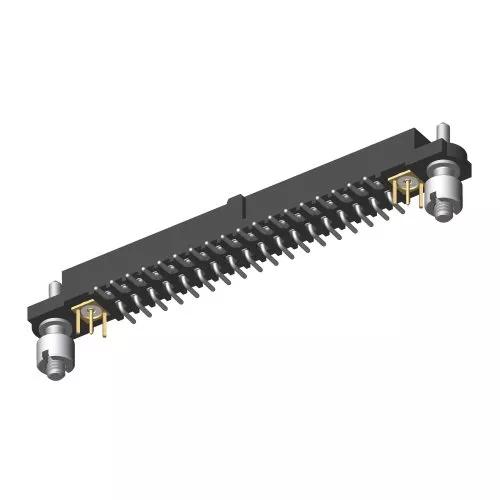

36+2 Pos. Female Signal+Coax Vertical SMT Conn. Guide Pin
2.00mm/4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek
Loading… Check availability
0 similar products View products
Traceparts account required
Product Description
- Guide pin + 6mm panel mount jackscrews (with slotted nuts), 36 x signal and 2 x coax contacts assembled for vertical PCB connection. For spare board mount nuts, order M80-2130000B.
- Surface mount signal contacts, 3mm length PC Tail coax contacts. Gold finish on contact areas and coax contact termination, Tin/Lead finish on signal contact termination.
- For complete pin numbering or pin out information, see Component Specification C005XX.
Traceparts account required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
2.00mm/4.00mm (0.079"/0.157")
Contact Gender:
Female/Socket/Jack
Connector Orientation:
Vertical
Connection Type:
Surface Mount (SMT) & PC Tail / Throughboard
Mating Pin Size:
Ø0.5mm (signal)
Current Rating:
Signal = 3.3A max individual contact, 3A max simultaneous; Coax = 0.5A per contact
Operating Temperature:
-55°C to +125°C
Soldering Data:
Max Solder Temperature: 235°C for 5 seconds
Style of Jackscrews:
Guide Pin with Board Mount Stud (Standard Gender)
Polarising Features:
Yes
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
Mixed
Number of Signal Contacts:
36
Number of Special (Power or Coax) Contacts:
2
Entry Style:
Top Entry
Materials
Finish / Plating on Termination:
Tin/Lead (signal), Gold (power)
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Beryllium Copper contact clip + Brass shell (signal), Beryllium Copper inner contact + Brass outer shell (coax)
Housing Material:
PPS
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Tube
Dimensions
Individual Part Weight:
4.15g
Overall Dimensions (L x W x D) in mm:
54.00 x 7.50 x 12.40
Thread Size:
M2
Height of Connector above PCB:
6.45mm
Length of Throughboard Tail:
3.00mm
Mating Profiles:
Frequently Asked Questions Ask a Question
Are the board/panel mount nuts supplied with this connector, or do I have to order them separately?
Yes, these connectors are supplied with the board/panel mount nuts – they will come packaged in a separate bag. If you need some spares, you can use part number M80-2130000B to order more.
Was this answer useful?
What torque value should be used for these jackscrews?
The torque value for board or panel mounting is 21±2cmN. This value is given in the Component Specification C005xx (page 14).
Was this answer useful?
