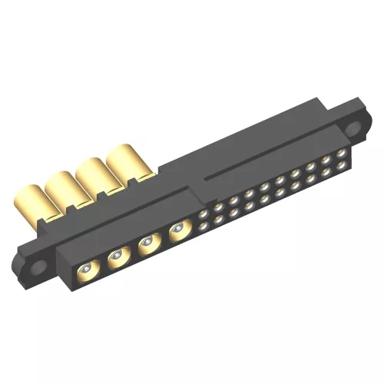

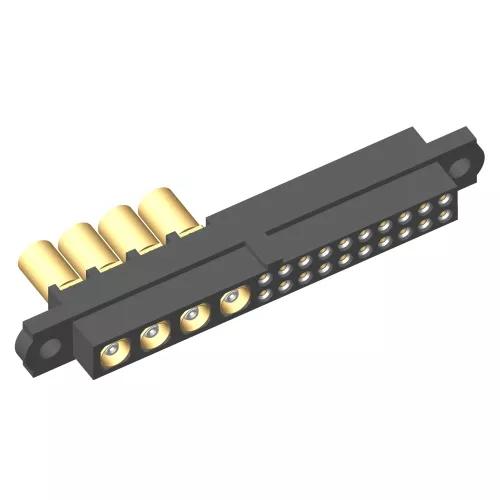

20+4 Pos. Female 28-32AWG+RG174/179/316 Cable Conn. Kit, No Jackscrews
2.00mm/4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek
In stock Check availability
2 similar products View products
Traceparts account required
- Complete kit: housing (no jackscrews) with 20 x signal and 4 x coax contacts supplied loose.
- Coax crimp contact suitable for RG174, RG179 & RG316 (Ø2.7mm max insulation diameter), Extra Small Bore signal contact suitable for 28-32AWG cable (Ø0.75mm max insulation). Gold finish on contact areas and coax contact termination, Tin finish on signal contact termination.
- For complete pin numbering or pin out information, see Component Specification C005XX.
Traceparts account required
EU RoHS Status:
Cable Conductor Size:
28-32AWG + Ø2.7mm (RG174, RG179, RG316) coax
Mating Pin Size:
Signal = 3.3A max individual contact, 3A max simultaneous; Coax = 0.5A per contact
-55°C to +125°C
Style of Jackscrews:
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Number of Special (Power or Coax) Contacts:
Finish / Plating on Termination:
100% Tin over Nickel (signal), Gold (power)
Finish / Plating on Contact Surface:
Base Material of Contact:
Beryllium Copper contact clip + Brass shell (signal), Beryllium Copper inner contact + Brass outer shell (coax)
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
46.00 x 5.50 x 13.40
Frequently Asked Questions Ask a Question
When I crimp this terminal, the conductor crimp is over the inspection hole – isn’t this a defect per IPC/WHMA-A-620?
We have a support article relating to this question, but essentially the hole you see is not designed to be an inspection hole. It is a plating hole, to allow the finish materials to reach the bottom of the crimp bore and help ensure performance. As such it is not relevant to IPC-A-620. Applying a crimp using the correct tools will indeed overlap the plating hole by 25 to 50%, but this is intended and expected. The design of the Datamate connector is so compact, there is no room to move the crimp area away from this hole without making the whole connector design larger.
Was this answer useful?
RoHS Compliant (2015/863/EU) with Exemption 6cPDF Download
