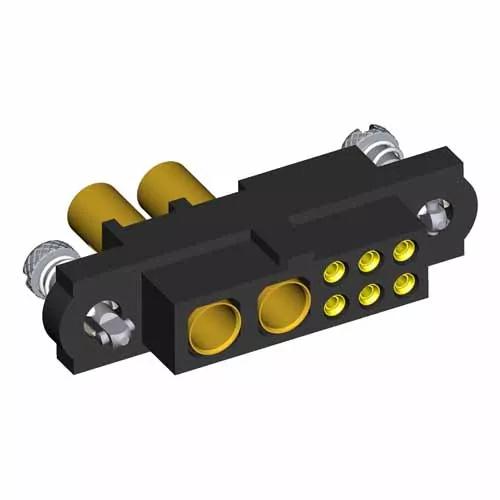

M80-4D10605FC-02-327-00-000
6+2 Pos. Female 22AWG+16AWG Cable Conn. Kit, 101Lok
2.00mm/4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek
In stock Check availability
3 similar products View products
Traceparts account required
Product Description
- Complete kit: housing (with 101Lok slotted head) with 6 x signal and 2 x power contacts supplied loose.
- Power solder contact suitable for 16AWG, Large Bore signal contact suitable for 22AWG cable (Ø1.1mm max insulation). Gold finish on contact area and termination.
- For complete pin numbering or pin out information, see Component Specification C005XX.
Traceparts account required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
2.00mm/4.00mm (0.079"/0.157")
Contact Gender:
Female/Socket/Jack
Connector Orientation:
Straight
Connection Type:
Cable (Solder + Crimp)
Cable Conductor Size:
22AWG + 16AWG
Mating Pin Size:
Ø0.5mm (signal)
Current Rating:
Signal = 3.3A max individual contact, 3A max simultaneous; Power = 10A max per contact
Operating Temperature:
-55°C to +125°C
Style of Jackscrews:
101Lok Bayonet Fixing with Slotted Head
Polarising Features:
Yes
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
Mixed
Number of Signal Contacts:
6
Number of Special (Power or Coax) Contacts:
2
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Beryllium Copper contact clip + Brass shell (signal), Brass (power)
Housing Material:
PPS
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Single Pack
Dimensions
Individual Part Weight:
2.338g
Overall Dimensions (L x W x D) in mm:
24.00 x 5.50 x 12.80
Mating Profiles:
Frequently Asked Questions Ask a Question
When I crimp this terminal, the conductor crimp is over the inspection hole – isn’t this a defect per IPC/WHMA-A-620?
We have a support article relating to this question, but essentially the hole you see is not designed to be an inspection hole. It is a plating hole, to allow the finish materials to reach the bottom of the crimp bore and help ensure performance. As such it is not relevant to IPC-A-620. Applying a crimp using the correct tools will indeed overlap the plating hole by 25 to 50%, but this is intended and expected. The design of the Datamate connector is so compact, there is no room to move the crimp area away from this hole without making the whole connector design larger.
