Active Product

M80-4C11005F3-02-PF5-00-000

10+2 Pos. Female 24-28AWG+10AWG Cable Conn. Kit, Jackscrews Panel Mount

2.00mm/4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek

Order Sample

Add to Favorites

In stock Check availability

1 similar products View products

Traceparts account required

Product Description

Complete kit: housing (with Guide pin + 5mm panel mount jackscrews) with 10 x signal, 2 x power contacts and slotted nuts supplied loose. For spare panel mount nuts, order M80-2130000B.
High Power solder contact suitable for 10AWG, Small Bore signal contact suitable for 24 to 28AWG cable (Ø1.1mm max insulation). Gold finish on contact area and termination.
For complete pin numbering or pin out information, see Component Specification C005XX.

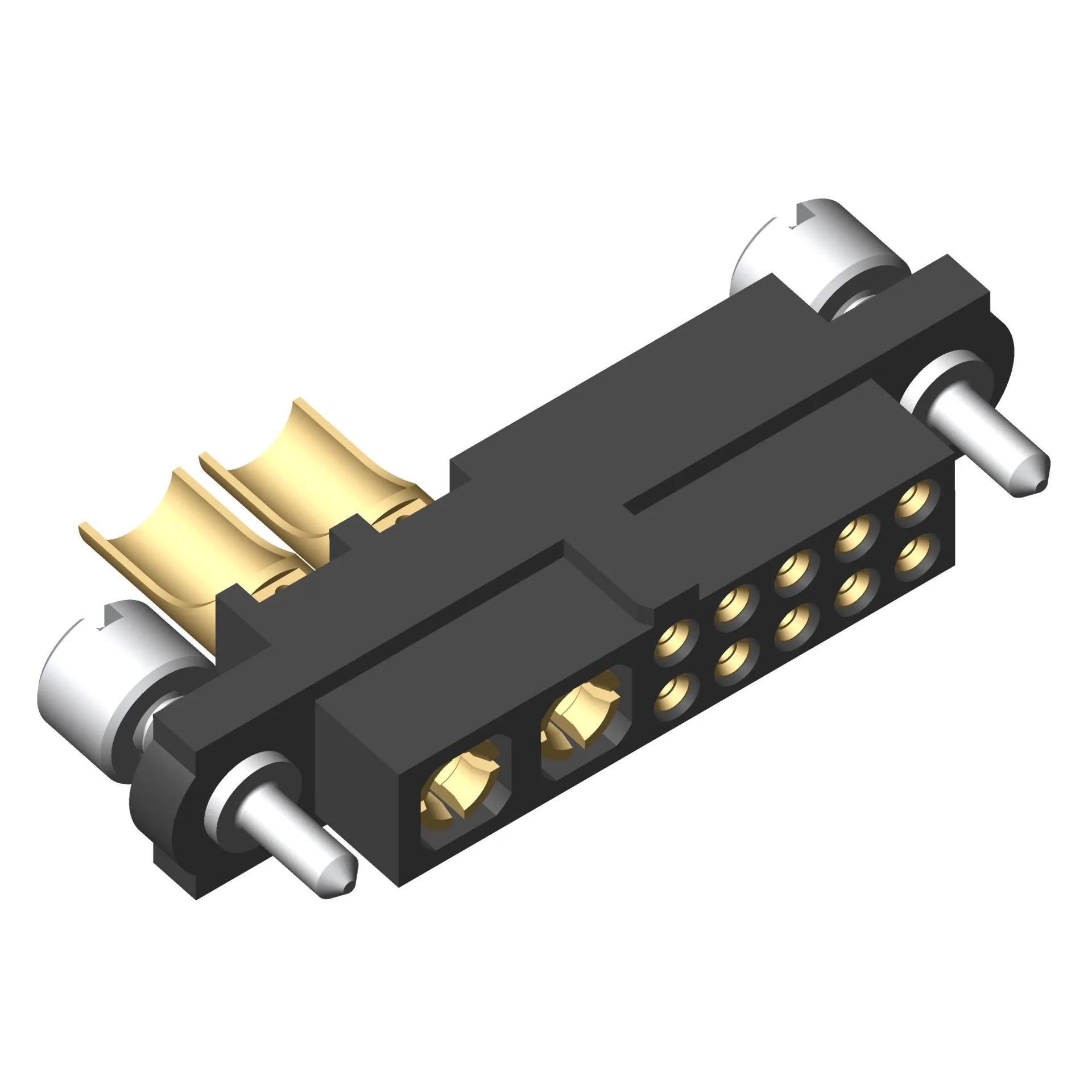

M80-4C11005F3-02-PF5-00-000 - 10+2 Pos. Female 24-28AWG+10AWG Cable Conn. Kit, Jackscrews Panel Mount

Youtube video for M80-4C11005F3-02-PF5-00-000

CAD drawing of M80-4C11005F3-02-PF5-00-000

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with Exemption 6c

Contact Pitch:

2.00mm/4.00mm (0.079"/0.157")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

24-28AWG + 10AWG

Mating Pin Size:

Ø0.5mm (signal)

Current Rating:

Signal = 3.3A max individual contact, 3A max simultaneous; Power = 40A max per contact

Operating Temperature:

-55°C to +125°C

Style of Jackscrews:

Guide Pin with Front Panel Mount Stud (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

Mixed

Number of Signal Contacts:

10

Number of Special (Power or Coax) Contacts:

2

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper contact clip + Brass shell (signal), Beryllium Copper (power)

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Single Pack

Individual Part Weight:

2.984g

Overall Dimensions (L x W x D) in mm:

28.00 x 5.50 x 14.50

Thread Size:

M2

Mating Profiles:

Catalog page - Datamate Mix-Tek Pin Numbering, Mating Profiles

Frequently Asked Questions Ask a Question

We have a support article relating to this question, but essentially the hole you see is not designed to be an inspection hole. It is a plating hole, to allow the finish materials to reach the bottom of the crimp bore and help ensure performance. As such it is not relevant to IPC-A-620. Applying a crimp using the correct tools will indeed overlap the plating hole by 25 to 50%, but this is intended and expected. The design of the Datamate connector is so compact, there is no room to move the crimp area away from this hole without making the whole connector design larger.

Was this answer useful?

Yes, these connectors are supplied with the board/panel mount nuts – they will come packaged in a separate bag. If you need some spares, you can use part number M80-2130000B to order more.

Was this answer useful?

The torque value for board or panel mounting is 21±2cmN. This value is given in the Component Specification C005xx (page 14).

Was this answer useful?

Sorry no, I’m afraid the metal backshells are not compatible with Datamate Mix-Tek connectors fitted with 10AWG High Power contacts. You will need to specify an alternative contact from the standard power contacts (32x or M80-32x), one that uses 12 to 20AWG cable. Do please contact our Experts if you need assistance specifying an alternative.

Was this answer useful?
