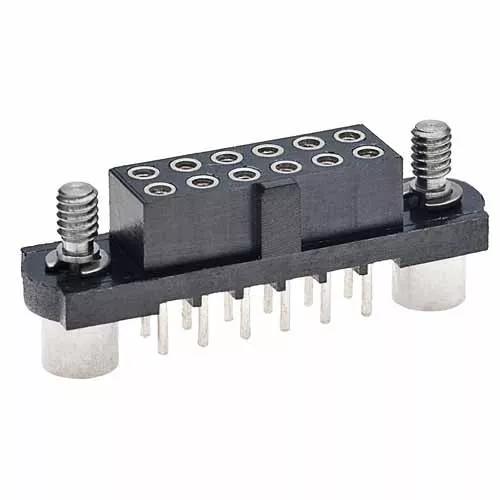

M80-4201601

8+8 Pos. Female DIL Vertical Throughboard Conn. Jackscrews

2.00mm Pitch High-Reliability Connector - Datamate J-Tek

  • Double Row, 3mm PC Tail connector with Hexagonal socket head jackscrews - 16 contacts (8+8).
  • Gold finish on contact clip, Tin/Lead finish on termination. Accepts 2mm A/F hex (Allen) key.

Active

Limited availability or made-to-order (check alternatives for popular products)

Not RoHS Compliant - 2011/65/EU

RoHS Compliant alternative - M80-4201642

Product Information

Specification

+
Product Type: 2.00mm Pitch High-Reliability Connector - Datamate J-Tek
Contact Pitch: 2.00mm (0.079")
Contact Gender: Female/Socket/Jack
Connector Orientation: Vertical
Connection Type: PC Tail / Throughboard
Mating Pin Size: Ø0.5mm
Current Rating: 3A
Operating Temperature: -55°C to +125°C
Soldering Data: Max Solder Temperature: 235°C for 5 seconds
Style of Jackscrews: Hex Socket

Materials

+
Finish/Plating on Termination: Tin/Lead
Finish/Plating on Contact Surface: Gold
Base Material of Contact: Beryllium Copper contact clip, Brass shell
Housing Material: PPS
Housing Color: Black
Housing Material UL Rating: UL94V-0
Individual Part Weight: 1.83g
Packaging Style: Tube

Dimensions

+
Number of Rows: 2
Total Number of Contacts: 16
Body Length: 26mm
Height of Connector above PCB: 5.5mm
End Stackable: No
Side Stackable: No
Polarising Features: Yes
Can be cut to another size: No
Thread Size: M2
Length of PC Tail: 3mm
Entry Style: Top Entry
Mating Profiles/Heights

Related Products

+
Dummy Contacts (for keying): M80-023
Screwdriver (for board mount units): Z9953-00
Z9951-00
Product Family: M80-420
