Active

M80-4184698

23+23 Pos. Female DIL Cable Housing, 101Lok

2.00mm Pitch High-Reliability Connector - Datamate J-Tek

J-Tek Female cable housing fitted with slotted head 101Lok bayonet-style fixings. Accommodates 46 (23+23) signal contacts.
Ideal for use with M80-2060005 T-Contact (22AWG), but can also be used with other female signal crimp contacts from the Datamate range.
For complete pin numbering or pin out information, see Component Specification C005XX.

Request Samples

Availability

M80-4184698 - 23+23 Pos. Female DIL Cable Housing, 101Lok

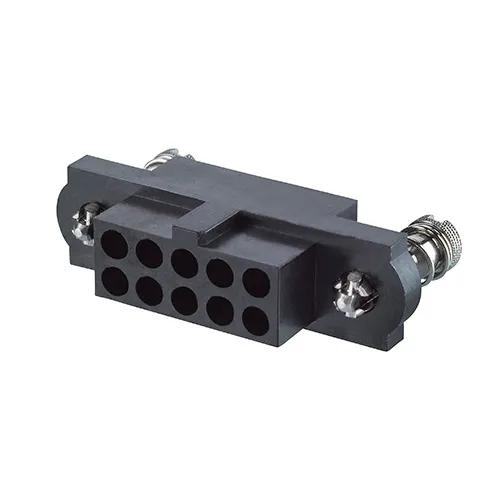

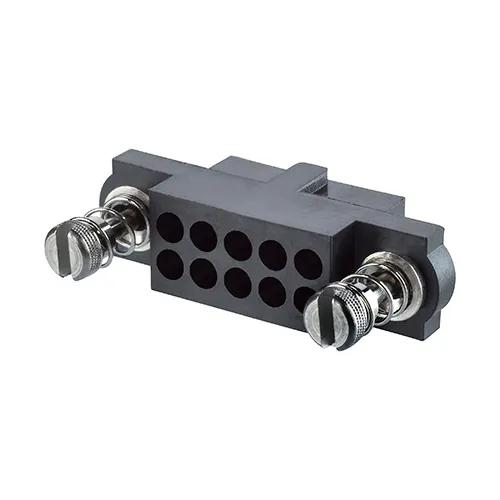

Representative image of product family

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Current Rating:

Dependent on assembled contacts

Operating Temperature:

-55°C to +125°C

Style of Jackscrews:

101Lok

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Individual Part Weight:

2.412g

Overall Dimensions (L x W x D) in mm:

56.00 x 5.50 x 10.90

Mating Profiles:

Catalog page - Datamate J-Tek Mating Profiles

Availability

350 in stock

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

PDF

Technical Drawing / Datasheet - M80-418.pdf

ZIP

M80-4184698 CAD Model (ZIP file containing STP and IGES)

Download

PDF

C005XX Component Specification - Datamate M80 and M83 Series (2.00mm, 4.00mm pitch High-Reliability)

PDF

Test Report HT062 - Datamate T-Contact 8.5A signal contact - General

PDF

Test Report HT005 - Datamate L-Tek Female Crimp Retention and Integrity (Pull-Off Force)

PDF

Test Report HT015 - Datamate Environmental (Vibration, Shock, Bump) - J-Tek and 101Lok

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Material composition for M80-418 series

PDF

Product Training Module - Guide to the Datamate T-Contact and associated housings

PDF

Product Training Module - Overview Guide to the Datamate range, 2 & 4mm pitch High-Reliability

PDF

Product Training Module - Guide to Datamate Latches (L-Tek), Jackscrews (J-Tek) and 101Lok

PDF

Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin

PDF

Product Training Module - Cable Products from Harwin

PDF

IS-01 - M22520/2-01 Hand Crimp Tool Instruction Sheet

PDF

IS-25 - Z80-280 Assembly Tool Instruction Sheet

PDF

Catalog page - Datamate T-Contact Female Cable Housings (Guide Pin, 101Lok)

PDF

Catalog page - Datamate J-Tek Specification, Pin Numbering

PDF

Catalog page - Datamate J-Tek Mating Profiles

PDF

Catalog page - Datamate Introduction

XLSX

Distributor part numbers for suitable cables for Datamate, Gecko, M300 & Kona

PDF

Product Summary - Datamate T-Contact and associated J-Tek housings

PDF

Product Summary - Datamate J-Tek High-Reliability Connectors

PDF

Outgassing data for Harwin products (plastics)
