8 Pos. Female SIL RG178 Cable Conn. Kit, Jackscrews

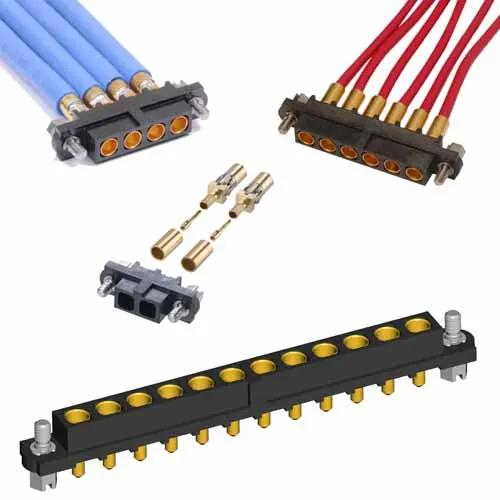

4.00mm Pitch High-Reliability Connector - Datamate Coax
Made to order
6 similiar products View products
- Complete kit: housing (with hexagonal slotted jackscrews) with 8 x coax contacts supplied loose. Identical to off-the shelf product M80-FC305F1-08.
- Coax crimp contact suitable for RG178 (Ø2mm max insulation diameter). Gold finish on contact area and termination.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
Cable Conductor Size:
0.5A per contact
-55°C to +125°C
Style of Jackscrews:
Floating Jackscrew with Hex Slotted Head (Standard Gender)
Can be cut to another size:
Number of Rows:
Number of Special (Power or Coax) Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Beryllium Copper inner contact, Brass outer shell
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
42.00 x 5.50 x 13.70
Frequently Asked Questions Ask a Question
What torque value should be used for these jackscrews?
The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).
Was this answer useful?
RoHS Compliant (2015/863/EU) with Exemption 6cPDF Download
