M80-263F106-02-00
2+6 Pos. Female Cable Housing, Jackscrews
2.00mm/4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek
85 in stock Check availability
3 similiar products View products
Samacsys account required
No login is required
Product Description

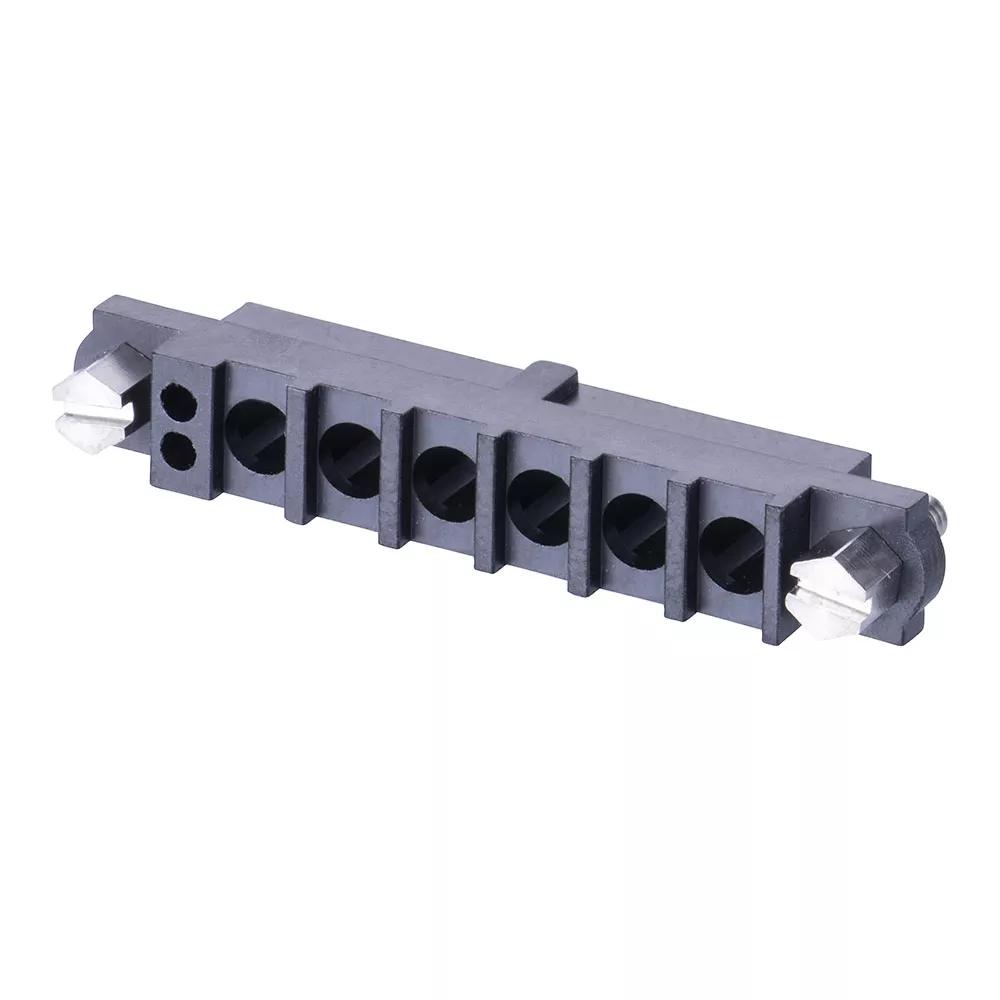

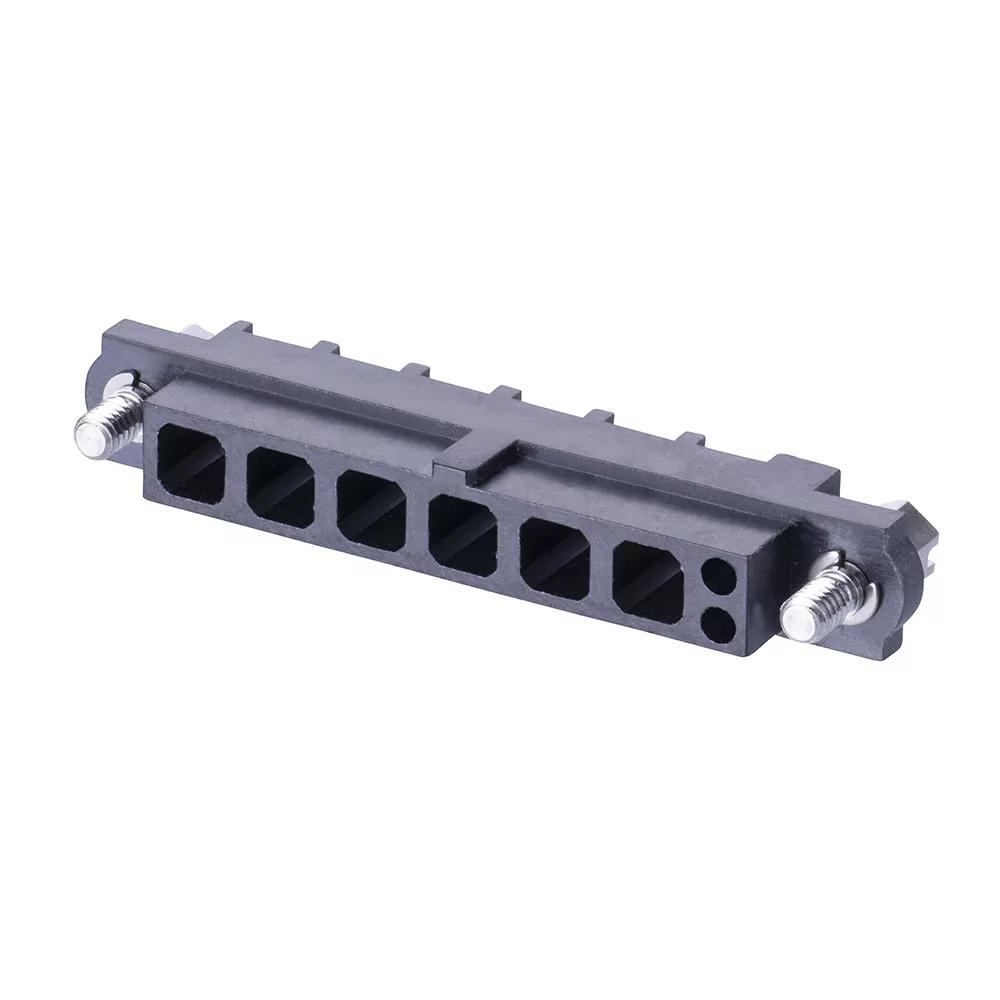

- Polarized Female mixed technology cable connector housing – 2 signal cavities in double row, 6 power/coax cavities in single row. Fitted with floating jackscrews, Hexagonal slotted head.
- Use with any of the female Datamate signal contacts and Datamate Mix-Tek power or coax contacts (sold separately): see the complete list of compatible contacts under “Related Products” further down this page.
- For complete pin numbering or pin out information, see Component Specification C005XX.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
2.00mm/4.00mm (0.079"/0.157")
Contact Gender:
Female/Socket/Jack
Connector Orientation:
Straight
Connection Type:
Cable (Solder + Crimp)
Current Rating:
Dependent on assembled contacts
Operating Temperature:
-55°C to +125°C
Style of Jackscrews:
Floating Jackscrew with Hex Slotted Head (Standard Gender)
Polarising Features:
Yes
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
Mixed
Number of Signal Contacts:
2
Number of Special (Power or Coax) Contacts:
6
Materials
Housing Material:
PPS
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
1.496g
Overall Dimensions (L x W x D) in mm:
36.00 x 5.50 x 9.50
Thread Size:
M2
Mating Profiles:
