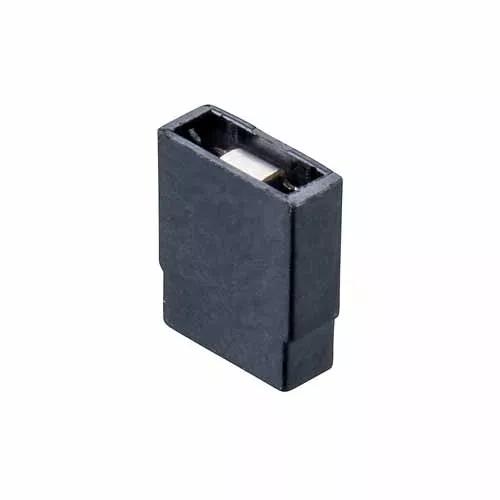

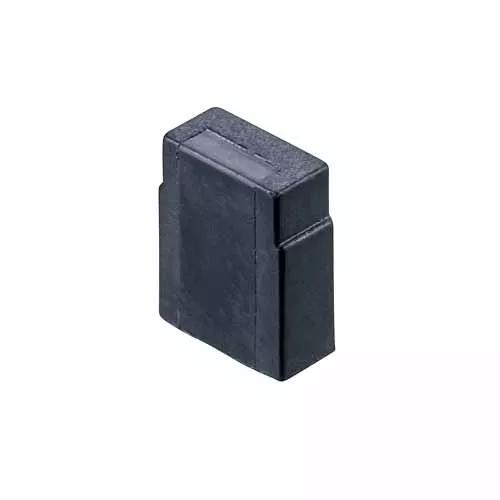

2 Pos. Female Jumper Socket, Closed Shunt, Black
2.54mm (0.1") Pitch PCB Connector - M20 Series
- Closed Top jumper socket or shunt – Black housing color, Tin finish.
- High-Reliability Multi-Usage, up to 50 operations.
- Alternative programming method to DIP switches.
EU RoHS Status:
Mating Pin Size:
-40°C to +85°C
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Contact Surface:
100% Tin over Nickel
Base Material of Contact:
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
5.00 x 2.30 x 6.30
M7767-xx CAD Model (ZIP file containing STP)Download
