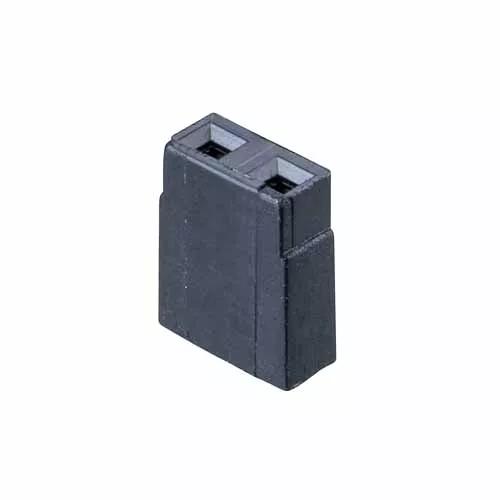

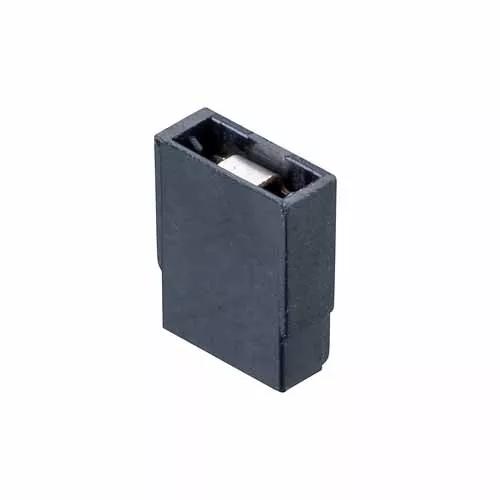

M7567-05

2 Pos. Female Jumper Socket, Open Shunt, Black

2.54mm (0.1") Pitch PCB Connector - M20 Series

  • Open Top jumper socket or shunt - Black housing colour, Gold finish.
  • High-Reliability Multi-Usage, up to 300 operations.
  • Alternative programming method to DIP switches.

Active

Popular product: currently in stock in network

RoHS Compliant - 2011/65/EU

(Does not require exemption)

Product Stock

Distributor Name Location of Stock Qty
Anglia Europe 12328 Website
Avnet Abacus Europe 32186 Buy Now
Digi-Key Global 6532 Buy Now
Farnell Europe 41427 Buy Now
Mouser Electronics Inc Global 12144 Buy Now
Newark USA 5617 Buy Now
TTI Europe Europe 68000 Website
TTI Inc USA 3319 Buy Now
Harwin Europe 159000

Stock available: contact distributor to purchase

View more stock

Part Number Stock Count View Stock
M7565-05 60191 View Stock
M7566-05 507212 View Stock
M7566-46 54650 View Stock
M7567-05 340553 View Stock
M7567-46 75179 View Stock
M7571-05 88145 View Stock

Product Information

Specification

+
Product Type: 2.54mm (0.1") Pitch PCB Connector - M20 Series
Contact Pitch: 2.54mm (0.1")
Contact Gender: Female/Socket/Jack
Connector Orientation: Vertical
Connection Type: Jumper Socket
Mating Pin Size: 0.64mm square
Current Rating: 3A
Operating Temperature: -40°C to +85°C

Materials

+
Finish/Plating on Contact Surface: Gold
Base Material of Contact: Phosphor Bronze
Housing Material: PBT
Housing Color: Black
Housing Material UL Rating: UL94V-0
Individual Part Weight: 0.116g
Packaging Style: Bulk/Loose

Dimensions

+
Number of Rows: 1
Total Number of Contacts: 2
Height of Connector above PCB: 6.3mm
End Stackable: Yes
Side Stackable: Yes
Polarising Features: No
Can be cut to another size: No

Related Products

+
Product Family: M7565-M7571

Mating Products
